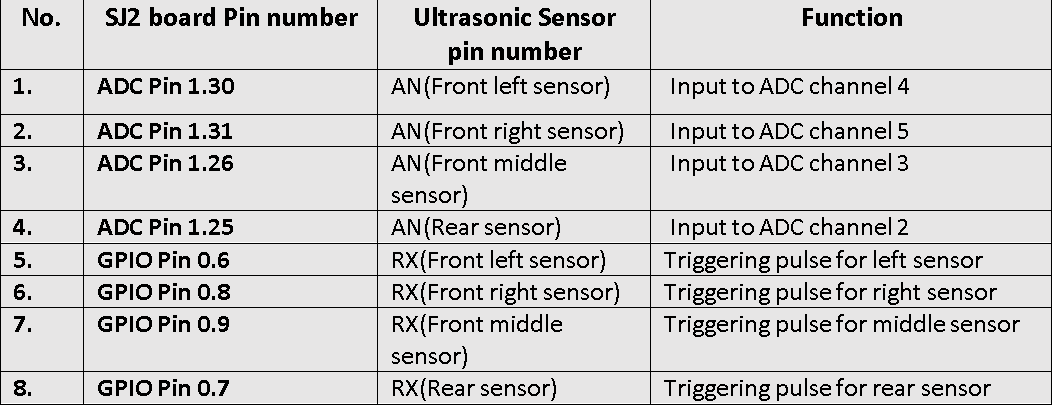

Hardware Schematic Diagram

ESC & DC Motor

The DC motor is controlled by ESC using PWM signals provided by the motor controller for forward and reverse movements. We used the 9v NiMH battery to power up the ESC. The DC motor is powered by the ESC which has a dc-to-dc converter which converts 9v to 6v. The output from the ESC is used to power the Servo motor. ESC has an ease set button which is used for calibration and setting different modes for the car.

The car can be operated in the following 3 modes:
Sport mode(100% Forward, 100% Brakes, 100% Reverse)
Racing mode(100% Forward, 100% Brakes, No Reverse)
Training mode(50% Forward, 100% Brakes, 50% Reverse)

As we desire to run the car at full throttle, Sport mode is being used. The frequency of the PWM signal fed to the servo motor is 100Hz. Based on the duty cycle set by the user, the car will go forward, reverse, or neutral.
PWM 10 to 14.9 for reverse.
PWM 15 for neutral.
PWM 15.1 to 20 for the forward.

Traxxas ESC

Traxxas Brushless DC Motor

Servo Motor

We are using Traxxas 2075 for this project which came with the car and it is responsible for steering the car. It takes the 6V power directly from ESC. The servo motor is controlled directly from the SJ2 micro-controller board. The PWM signal is supplied at a frequency of 100 Hz. Based on the duty cycle of the signal sent to the servo, the direction of servo motor can be changed:

PWM 10 to 14.9 for turning left.
PWM 15 for straight.
PWM 15.1 to 20 for turning right.

Traxass Servo Motor(2075)

RPM Sensor

The RPM sensor is used as an input to maintain a constant speed of the vehicle. The sensor we are using is Traxxas RPM sensor which using hall effect to detect the movement of the DC motor.
Mounting the sensor:
There are two parts to the RPM sensor - one is the trigger magnet and the other is the sensor. The sensor mounts on the inside of the gear cover, the trigger magnet mounts on the DC motor shaft. The gear cover and motor shaft need to be removed using the toolkit provided along with the RC car. The mounting process can be found on youtube.
How the sensor works:
The trigger magnet attaches to the spur gear. The sensor uses the DC voltage of the motor to trigger a pulse on the sensor for every rotation of the spur gear. These pulses are sent as hardware interrupt to the SJ2 board. The number of pulses are counted for every half second and that is converted into RPM and KMPH. The RPM sensor has 3 wires, the white wire is the output wire that provides the pulses to the SJ2 Board, and the other wires are Supply(3.3V) and GND.

Traxxas RPM Sensor

Trigger Magnet

Software Design

At startup the motor is initialized by giving a neutral PWM signal for 3s and the interrupt for the rpm sensor input is setup as well.

The motor receives angle for steering and speed in a single CAN message from the driver ECU. After receiving the command the speed value is converted into corresponding value of PWM by increasing or decreasing neutral PWM value in steps of 0.01. The physical value of the motor speed is compared to the speed received from the driver and it is reduced or increased to match with the desired speed. For reverse a PWM of 14.5 is given to smoothly reverse the car.

The direction of the car is set according to the value of ENUM received from the driver ECU. For navigation the car takes soft turns and when and obstacle is detected it takes hard turns to avoid collisions.

Speed Control Flowchart

Technical Challenges

• ESC calibration: The ESC controlling the DC motor goes out of calibration again and again. We had to connect it to the receiver of the RC car and re-calibrate it again. Finally I added a neutral signal in for the first 3 seconds in the initialization sequence of the motor so that the ESC can be calibrated every time the controller is reset or powered on.
• Changing PWM: PWM value of the motor will change sometimes and depends on the weight of the car and also a faster speed might not give enough time for the sensor to detect an obstacle. Hence keeping a slow and steady speed and relying on the RPM sensor is necessary to ensure the car keeps moving and doesn't stop on any inclines.
• Receiving steer commands at higher frequency helped in reducing the response time in obstacle avoidance.

Geographical And Bridge Controller

Hardware Design

The Geographical controller does the processing for compass data and GPS data. After processing the data for heading ,bearing and distance to destination , the controller sends these data over can bus to the Driver node. The GPS module is interfaced with SJ2 board using UART. SJ2 board gets the data (NMEA string) for GPS coordinates processing. The controller sends the command to GPS module to filter the string and only send GPGGA string. The Compass module is interfaced over I2C to find the heading for car navigation. The CAN transceiver uses port 0 (can1) of the SJ2 board.

3 Axis Magnetometer (eCompass)

GPS Module

Software Design

The GEO controller consisted of 4 main parts which are: 1. GPS Module 2. Compass 3.Waypoints Algorithm 4. Geo Logic

Overview

The geographical node calls periodically the following code modules:

• gps.c
• compass.c
• checkpoint.c
• geological.c
• can_bus_message_handler.c

These modules, calculate compass heading degree, bearing, parse GPS coordinates, calculate the checkpoints the RC car has to go through when navigating to a destination, send distance to destination to driver node, and handle messages received on the CAN bus.

• The period_callbacks__initialize() function calls the following functions:
  • can_bus_initializer__init(): initializes the CAN bus to handle MIA and messages.
  • geological__init(): initializes the GPS, compass, and checkpoint algorithm.

• The period_callbacks__1Hz() function calls the following function:
  • can_bus_initializer__handle_bus_off()

• The period_callbacks__10Hz() function calls the following functions:
  • can_bus_message_handler__manage_mia_10Hz() to manage MIA signals.
  • can_bus_meesage_handler__handle_all_incoming_messages_10Hz() to handle messages on the CAN bus (e.g. destination coordinates from Bridge sensor node).

GPS

Initialization

In the initialization process of the GPS, the line buffer module is configured to parse the GPS messages, the GPIOs P4.28(Tx) and P4.29(Rx) are configured, UART interrupt queues enabled, and the UART is configured at a baudrate of 9600.

Configuration

In the gps__run_once_10Hz() the GPS is initially configured once to disable all NMEA messages except GNGGA which is message chosen to parse the coordinates and GPS lock.

Parsing NMEA GNGGA messages

The GPS module constantly transmits NMEA GNGGA messages over UART to the SJTwo MCU. These messages which come in the form of a string are stored character by character in the line buffer until a new line character which indicates the end of string. The stored string is then extracted from the line buffer and the checksum is verified to ensure that the message is not corrupted. The extracted line is then tokenized to parse the latitude, latitude direction, longitude, longitude direction, and fix quality. South and West directions are also properly handled to make the latitude and longitude negative values.

GPS lock

The GPS lock is a function in the gps.c module that has the job to set a bool flag and blink an LED when the fix quality is either 1 or 2 in the GNGGA message. When the fix quality is one of those values it means the GPS has acquired a good connection to the satellites and the data received is valid. The LED blinking functionality was used for debugging purposes indicating the GPS has a lock. Whereas the bool flag was used as a condition to calculate the bearing and checkpoints only when the GPS had a lock meaning that the current coordinates were valid.

Compass

Initialization

The compass initialization configures the HMC5883L magnetometer registers over I2C bus to default settings using a gain of 1090 and single mode.

Heading degree computation

The compass heading degree is computed by using the tilt compensation algorithm and the pitch and roll values calculated from the SJTwo accelerometer. The tilt compensation algorithm ensures that the values of the compass heading are precise within an error of 1 to 2 degrees when the compass is tilted in all directions. Shown below are the formulas used to compute the heading degree referenced from this link.

Pitch and Roll:

pitch = asin(-accelerometer_x_axis)

roll = asin(accelerometer_y_axis / cos(pitch)

Tilt compensated magnetic sensor values for x and y:

Mx_c = (Mx - offset_x_axis) * cos(pitch) + Mz * sin(pitch)

My_c = (Mx - offset_x_axis) * sin(roll) * sin(pitch) + (My - offset_y) * cos(roll) - Mz * sin(roll) cos(pitch)

• where:
  • Mx_c = Magnetometer x-axis tilt compensated
  • My_c = Magnetometer y-axis tilt compensated
  • Mx = Magnetometer x-axis value
  • My = Magnetometer y-axis value
  • Mz = Magnetometer z-axis value

The offset values for x and y are calculated during calibration to reduce soft-iron and hard-iron distortions. Soft-iron distortions are generally caused by nearby metals such nickel and iron in which distorts the existing magnetic field of the compass depending in which direction the field acts. Hard-iron distortions are produced by objects that generate a magnetic field such as the motor of the RC car causing a permanent bias in the compass sensor if not corrected.

To calculate the scale factors for x and y to reduce soft-iron distortions the following equations were used:

a = (max_y - min_y) / (max_x - min_x)

b = (max_x - min_x) / (max_y - min_y)

x_scale = a > 1.0 ? a : 1.0;

y_scale = b > 1.0 ? b : 1.0;

To calculate the offset for x and y to reduce hard-iron distortions the following equations were used:

offset_x = ((max_x + min_x) / 2.0) * x_scale

offset_y = ((max_y + min_y) / 2.0) * y_scale

Heading angle

heading = azimuth = atan2(magnetometer_x_axis / magnetomer_y_axis) - π + 0.23

To the heading is also added the declination angle which is based on location and in our case it is 0.23. This heading is calculated in radians since atan2 returns a value between -π and +π. Therefore, before converting the heading into degrees the value needs to be normalized to put it in the range from 0 to 360 degrees.

Geological.c module

Initialization

The geological.c module initializes the gps and compass with the configurations explained before.

Run once at 10Hz

Every 10Hz the geological_run_once() function periodically calls the gps module, gets the parsed coordinates, gets the compass heading degree, sets the current and destination coordinates, sends the calculated bearing degree over CAN to the driver node, and runs the checkpoint algorithm.

Bearing Angle computation

The bearing which is the angle towards our desired destination is computed using the formulas below referenced at this link.

X = cos θb * sin ∆L
Y = cos θa * sin θb – sin θa * cos θb * cos ∆L

β = atan2(X,Y)

• where:
  • θa = current latitude
  • θb = destination latitude
  • ∆L = destination longitude - current longitude
  • β = heading degree in radians

The bearing is also calculated in radians since atan2 returns a value between -π and +π. Therefore, before converting the heading into degrees the value needs to be normalized to put it in the range from 0 to 360 degrees. The calculated bearing is then sent to the driver node which use the compass heading degree and the bearing to align the car toward the target destination.

Checkpoints Algorithm

The checkpoint algorithm depicted below uses a simple algorithm in which chooses the next point to navigate to if the checkpoint is the closest to the car while at the same time the closest to the destination. For the testing of our car navigation system, we choose the top floor of the north garage at San Jose State University as it provides a great open space and best signal for the GPS. In the figure shown below, five checkpoints were chosen in which the car can navigate to depending on where the destination is set to. Having fewer points rather then having too many reduces the amount of checkpoints the car has to move to and allows to reach the destination quicker while at the same time avoid areas such as the ramp in which the car should not go to.

To calculate the geographical distance between the two points the haversine formula was used which is called periodically from the checkpoint.c module. Below is the formula used:

a = sin²(ΔlatDifference/2) + cos(lat1) * cos(lt2) * sin²(ΔlonDifference/2)
c = 2 * atan2(sqrt(a), sqrt(1−a))
d = R * c

• where:
  • ΔlatDifference = latitude 2 - latitude 1 (difference of latitude)
  • ΔlonDifference = longitude 2 - longitude 1 (difference of longitude)
  • R = 6371000.0 meters = radius of earth
  • d = distance computed between two points
  • a and c are intermediate steps

Technical Challenges

Driver Node

Driver Node is the master controller. It receives input from sensor and bridge node, processes it to make right decision for controlling the speed and steering direction of the car and then commands the motor node to drive accordingly. This node is also interfaced to the LCD, which acts as dashboard of the car and displays information such as car speed and distance to destination on the screen.

Hardware

LCD is interfaced with the SJ2 board and it communicates over UART. P4.28 and P4.29 which is UART3 on board is used. Headlights and Tailights are also connected to the driver node using four GPIOs.

Sjtwo-board

LCD Display

Software Architecture Driver Logic

Obstacle Avoidance Logic

if (obstacle_on_all_front_sides()) {
          stop_the_car();
          reverse_car_and_steer();
        } else if (obstacle_on_left() && obstacle_in_right() && (!obstacle_on_front())) {
          drive_forward();
        } else if (obstacle_on_left() && (!obstacle_in_right())) {
          obstacle_on_right = false;
          get_steering_range(obstacle_on_right); // right steer
        } else if (obstacle_in_right() && (!obstacle_on_left())) {
          obstacle_on_right = true;
          get_steering_range(obstacle_on_right); // left steer
        } else if (obstacle_on_front() && (!obstacle_on_left() && !obstacle_in_right())) {
          stop_the_car();
          reverse_car_and_steer();
          obstacle_on_right =
              (internal_sensor_data.SENSOR_SONARS_right < internal_sensor_data.SENSOR_SONARS_left) ? true : false;
          get_steering_range(obstacle_on_right);

        } else if (obstacle_on_rear() && (!obstacle_on_all_front_sides())) {
          obstacle_on_right =
              (internal_sensor_data.SENSOR_SONARS_right < internal_sensor_data.SENSOR_SONARS_left) ? true : false;
          get_steering_range(obstacle_on_right);
          debug_values.car_driving_status = FORWARD;
          debug_values.car_steering_status = STRAIGHT;
        } else {
          stop_the_car();

          debug_values.car_driving_status = STOPPED;
          debug_values.car_steering_status = STRAIGHT;
        }

Steer Left and Right

  if (obstactle_on_right == true) {
    //steer left
    motor_signal.DRIVER_TO_MOTOR_direction = (motor_signal.DRIVER_TO_MOTOR_direction <= 40)
                                                 ? motor_signal.DRIVER_TO_MOTOR_direction + offset_to_angle
                                                 : max_angle_threshold;
    motor_signal.DRIVER_TO_MOTOR_speed = slow_speed;
    update_lights(10, headlight_left);

  } else {
    //steer right
    motor_signal.DRIVER_TO_MOTOR_direction = (motor_signal.DRIVER_TO_MOTOR_direction >= -40)
                                                 ? motor_signal.DRIVER_TO_MOTOR_direction - offset_to_angle
                                                 : -max_angle_threshold;

    motor_signal.DRIVER_TO_MOTOR_speed = slow_speed;
    update_lights(10, headlight_right);
  }

Reverse and Steer

  if (!obstacle_on_rear()) {
    motor_signal.DRIVER_TO_MOTOR_direction = 0;
    motor_signal.DRIVER_TO_MOTOR_speed = reverse_speed;
    update_lights(10, taillight_left);
    update_lights(10, taillight_right);
  } else {
    stop_the_car();
  }

Navigation to Destination

Driver receives raw heading and bearing from the Geo node and in order to calculate the turning direction, it first computes the difference between heading and bearing. Then based on which quadrant the difference lies and where the destination lies, take navigation decisions to steer left, right or straight.

if (heading_difference >= 350 && heading_difference <= 10) {
    gps_navigation_direction = straight;
    heading_difference = fabs(heading_difference);

    debug_values.car_driving_status = FORWARD;
    debug_values.car_steering_status = STRAIGHT;
  } else if (heading_difference > 180) {
    gps_navigation_direction = left;
    heading_difference = 360 - heading_difference;

    debug_values.car_driving_status = FORWARD;
    debug_values.car_steering_status = LEFT;

  } else if (heading_difference < 0 && heading_difference > -180) {
    gps_navigation_direction = left;
    heading_difference = fabs(heading_difference);

    debug_values.car_driving_status = FORWARD;
    debug_values.car_steering_status = LEFT;
  }

  else if (heading_difference < -180) {
    gps_navigation_direction = right;
    heading_difference = fabs(heading_difference + 360);

    debug_values.car_driving_status = FORWARD;
    debug_values.car_steering_status = RIGHT;
  } else if (heading_difference > 0 && heading_difference <= 180) {
    gps_navigation_direction = right;

    debug_values.car_driving_status = FORWARD;
    debug_values.car_steering_status = RIGHT;
  }

Technical Challenges

• Driver receives data from sensor and geo node, so mainly the issue was sometimes not getting data accurate data from sensors or receiving late. This has made the obstacle avoidance quite slow. Make sure the sensor is transmitting data fast enough and driver is also receiving fast.
• Driver Node has the least hardware interfacing compared to other nodes, so there were not many challenges on hardware front. If the LCD communicates over UART, remember to connect the gnd of both lcd and board otherwise the data printed on LCD could be gibberish.
• High speed of car can also cause to problem for sensors, we noticed that they cannot accurately detect obstacles on high speed.
• Compass calibration was also issue sometimes, if not properly calibrated the car will have trouble navigating to gps location.

Mobile Application

Through the app we first scan for available devices and connect to the Bluetooth present on the RC car. After the connection is successful the destination is pinned on the map and by clicking on the "Send Destination to Car" button the car is notified of the destination. After this we can control the start and stop of the car with the two buttons present on the application.

User Interface

App User Interface

Software Design

The app was developed using MIT App inventor

MIT App Inventor

Backend development

Bluetooth

Technical Challenges

Conclusion

Project Video

Project Source Code

https://gitlab.com/ritupatil1/firebolt/-/tree/master

Advise for Future Students

• Get started early and make your hardware stable as early as possible so that you have enough time for extensive testing of the software. Because without on field testing corner cases and potential problems in the code can't be determined.
• We took references from previous projects and ran into problems due to lack of information. Ensure that you fully understand both software and hardware you are taking reference from before implementing on the car.
• First of all make your motor run smoothly only then you will be able to do on field testing. So even if you have to use initial week to get the motor part ready. Buy new hardware for that to---- to be continued*(Ritika)
