This project is about a large team getting a car to self-drive to a selected destination. This involves working with an RTOS running on a low power processor and various different processor boards working together over a CAN bus.

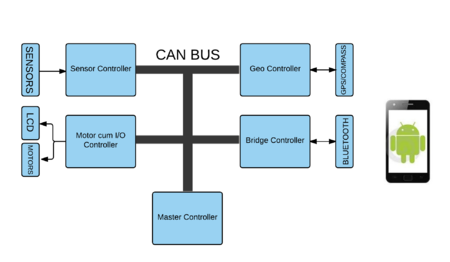

Self-Drive Car Block Diagram

Gitlab

Create a "master" Gitlab project that contains sub-folders of each project OR a Gitlab project that contains different "master" branches for each controller. Please provide me the access (Gitlab username: preet) to your master project so I can peek at all of your source code when needed. The Gitlab will track your commit history so I would also know how much work each person or team is contributing.

The folder structure should be:

  • TeamX_CmpE_Fall2015
    Sensor
    IO
    <other controller projects>

Parts

Controllers

Given below are the controllers, their duties, and the number of people involved. It is possible that one team gets done with their part, but that doesn't mean your job is done. If you are done, help others. If you are done, and the primary objective is met (the car can self-drive), then add more features. There are many things you can do, and the 16-week semester definitely won't provide an opportunity to sit and relax. Get up and learn!.

Controllers
Sensor Controller

(2 members)

  • Interfaced to front and rear vision.
    Consider Sonar, and/or IR sensors with long distance vision
  • Sensors must be "filtered" and must provide reliable "vision"
  • Provide additional sensor inputs:
    Provide battery voltage, and % charge remaining
    Light sensor reading
    Tilt (angle of the car)
Motor and I/O Controller

(2 members)

  • Interfaced to motor control system of the car
    Provide a means to steer, and drive the car
  • Provide feedback of the speed using a wheel encoder or speed sensor
  • Provide an LCD screen to report car status
    Errors and communication status
    Sensor values
  • Buttons to start and stop the car
  • Button hard-coded to set a specific destination
  • Provide means to turn on/off the headlights (etc).
Communication Bridge + Android

(2 members)

  • Provide means to communicate and display status on an Android/iPhone device
  • Allow a user to see sensor values, car speed (etc)
  • Allow a user to select a destination from Google Earth
Geographical Controller

(2 members)

  • Interface to a 5Hz or faster GPS
  • Interface to a compass
  • Allow a GPS coordinate to be "set"
    Based on the set coordinate, calculate, and provide CAN data regarding
    the current heading, and the desired heading to reach the destination
  • This unit needs to compute the "heading degree" to reach the destination
Central Controller

(2 members)

  • This is the primary unit that communicates with every controller to drive the car
  • This unit shall also turn on headlights (etc), and be the "brain" of the car
  • Upon a detection of a "Start" condition, work with different controllers to drive the car
    Motor Controller and Geographical Controller to drive the car to destination
    Avoid obstacles on the way to the destination
    Add features once you finish the primary goal

Communication

Each controller shall provide a means to communicate with the other controllers. Before you read any further, it requires that you have deep knowledge of the CAN bus. CAN is a BROADCAST communication bus, and the controller or message with the highest priority shall pick a lower CAN message ID.

Recommended CAN Message ID format

We can split the 11-bit CAN message ID into 2 portions, one that dictates the priority of the message (message type), and the other that dictates the priority of the controller. For example, the airbag sensor ECU should use lowest controller ID and lowest message type.

The split of message ID can also help filter out unwanted messages from arriving into your microcontroller as the CAN peripheral of the microcontroller will filter out the unwanted data. For example, you can choose to accept all messages from the sensor controller, while making sure you receive no messages from the motor controller. In particular, your CAN hardware filter needs a single EXTENDED GROUP filter.

CAN Communication Protocol (11-bit CAN ID)
Reserved bit Source Controller Message type
1-bit : B10 6-bit : B9:B4 4-bit : B3:B0

DBC Format

DBC format is a well known format to describe the format of a CAN message. This is essentially the schema of the data that is communicated over the CAN bus. Please view the linked DBC Format article for details before reading further.

How will communication work?

After startup, begin to send your data messages at the desired periodic rates using the periodic scheduler as listed below in the example. Whichever controller wants to listen to your periodic message shall intercept your message and use it for its needs. You can have global variables for the CAN data messages, and tasks should update the data within these messages.

Features

The first feature to develop is the self-drive capability and everything else comes later. While some people in the team may be focusing on delivering this primary feature, other members can focus on other things such as automatic headlights, variable speed settings through Android interface etc. If your product team fails, then just like it would happen in the industry, you will get laid off, and I will see you again in the course ;(

Quick and Easy Features

These features are mandatory, just to help you debug faster.

  • Each controller shall display its version information at startup, for example:
    printf("Vesion: %s %s\n", __DATE__, __TIME__);
  • Each controller shall use the 2-digit LED display to display meaningful info
    Maybe Geo Controller can display # of feet to destination
    Central controller can display number of CAN messages received per second.
  • Each controller shall use the 4-LED lights for some indication
    LED0 should be lit if an error happens (common to everyone)
    Each LED should be labeled about what it means (maybe with a label maker?)

Robustness

Your project is one project as a whole. So if it doesn't work, do not blame it on "hey, their controller crashed". If a controller crashes it will restart, and you will have live with missing data messages. So your code should be robust, and self-recover from any crashed event or any brief power disruptions.

Likewise, if you send a message, and it fails (in case the other controller is down), your CAN bus may go to abnormal state and turn off. In this condition, all of your messages will fail, and you will have to handle this. I recommend the following:

  • In 1Hz periodic callback, check if the Bus if OFF, and simply reset it
  • Do not reset it in the CAN ISR callback from bus-off since a bad controller can continuously cause errors without the delay of 1Hz

Startup Tests

Since we rely on multiple controllers, it is critical to be able to test each controller quickly, reliably, and easily. So here is a startup test the Central Controller must process upon each boot:

  • Central controller sends a message requesting boot information from each controller
  • Central controller checks responses after about 100 ms:
    Each controller must have responded
    Each controller's boot code (normal, abnormal) should be validated.

Considerations

You should consider and design your software for all of these events:

  • Where is the kill switch?
  • Can you remotely shut down the car in 3 seconds?
  • If your controller goes down, will it fully recover to "last known configuration"?
  • If critical sensor data stops coming, how will you stop the car?
  • How can you quickly discover one or more controllers reaching an error state?
  • Log the data on the SD card as much as possible.
    If something wrong happens, you need to know what happened.
    Each controller must log its "startup" time, to debug when a controller crashes and restarts

Grade

Your grade is relative. The best team earns the best grade. Remember than three out of three features working 100% is far better than nine out of ten features working. Focus on less features, with highest quality.

Sample Code


Part 1: Basic structure and CAN initialization

/************** periodic_callbacks.cpp ************/
#include "can.h"

bool period_init(void)
{
    /* Initialize CAN Bus and set the acceptance filter(s) */
    CAN_init(can1, 100, 10, 10, NULL, NULL);

    /* TODO Initialize acceptance filters */
    CAN_reset_bus(can1);

    return true;
}


Part 2: Periodic Parsing Task

Only one FreeRTOS periodic function should be responsible to receive CAN messages (while any task can send a CAN message). This receiving task should "route" the incoming messages to the appropriate "consumers" in your code.

See the DBC Format article for more sample code related to handling the received messages over the CAN bus.

void period_100Hz(void)
{
    can_msg_t msg;
        // Process all messages that arrived in the last 10ms
        while (CAN_rx(can1, &msg, 0))
        {
            /* TODO: Call auto generated code from DBC parser to parse the message */
        }
}
