OpenSJ Bluz

Real-time system for acquiring, monitoring and distributing miscellaneous sensor data.

OpenSJBluz Project Overview


OpenSJ Bluz - A project which aims to develop a system to collect, analyze and distribute sensor data in real-time.

With the rapid adoption of IoT, everyone is looking for ways to get their sensors connected. There is a rising demand for all sensor data to be available in real-time across the internet. The proliferation of smart phones has given access to highly mobile computational power. OpenSJ Bluz, brings together next generation of sensor data gathering, analysis and distribution to the classroom and beyond, today. Gone are the days when sensors needed to be connected using wired UARTS and when data transmission meant copying csv and binary dump files.

OpenSJ Bluz, uses the latest wireless technology - Bluetooth Smart (4.0) also known as Bluetooth Low Energy Or BLE to acquire data from sensors connected to the SJOne board. Data is acquired in realtime using FreeRTOS - a Real-time operating system. This data is then transmitted to a Bluetooth LE enabled smartphone which analyzes the data and gives immediate feedback. The data is then pushed to the cloud and distributed to interested and authenticated nodes using a real-time database called FireBase. The connected nodes then further analyze and process this data.

This makes OpenSJ Bluez an end-to-end real-time data collection, analysis and distribution system.

Objectives & Introduction


The main objectives of this project are classified into 3 groups. They are :-

  1. Acquiring data from sensors
    1. Use FreeRTOS API's to interface with IMU sensor
    2. Use FreeRTOS API's to interface with Light sensor
    3. Use FreeRTOS API's to setup UART and communicate with BLE wireless module
  2. Bluetooth LE interfacing
    1. Setup Adafruit BLE wireless module
    2. Generate connection profile
    3. Setup and configure BLE services, characteristics and their descriptors
    4. Setup and configure android device to connect with wireless module
    5. Implement BLE interfaces for configured services, characteristics and descriptors
    6. Scan for BLE device and connect to device of interest
    7. Pull in sensor readings
  3. Data analysis and distribution

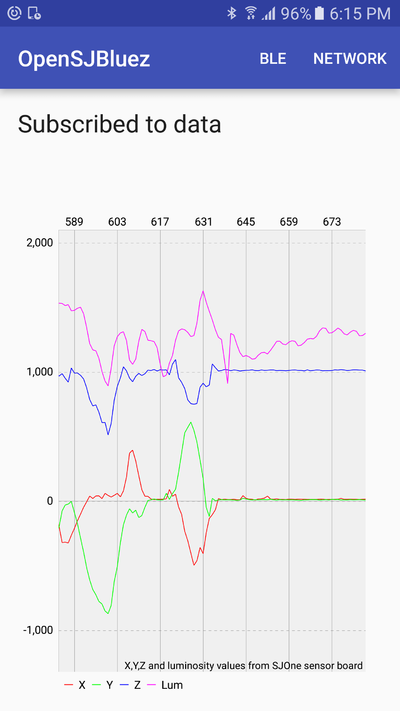

    1. Generate immediate feedback visualization for sensor data
    2. Implement push to cloud framework
    3. Implement pull from cloud framework
    4. Generate visualization for pulled sensor data


There is a huge demand for real-time sensor data streaming over the internet. This project aims to realize this using the SJOne board and aims to make a versatile system which can be used as the basis for a full fledged sensor data collection, analysis and storage system. Such a system should be able to support many different producer and consumer nodes. In this project we are using the SJOne board and an android smartphone, but the system should be extensible to any device that can communicate sensor data to any kind of an internet enabled smart phone.


  • Bluetooth Low Energy(BLE) is powerful technology and now it’s available for everyone because it is inexpensive and less complex than it’s older brother, Bluetooth classic.
  • Bluetooth Low Energy is incredibly flexible; anyone can create a custom profile for specific applications and still adhere to the Bluetooth SIG.

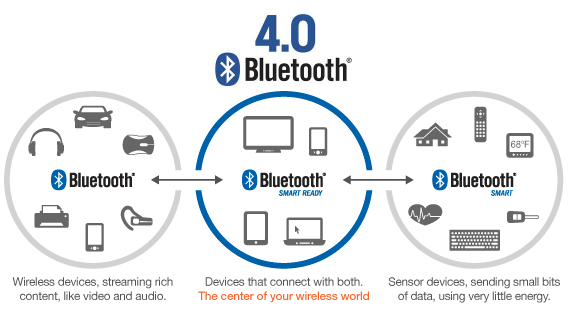

Bluetooth Generic Block Diagram

Let’s first talk basic terminology and then go into details:

  • Master (or “central“) devices scan for other devices. Usually, the master is a smartphone/tablet/PC (Bluetooth Smart Device).
  • Slave (or “peripheral“) devices advertise and wait for connections. Usually, the slave is a small device like a fitness tracker or a smartwatch.
  • Client devices access remote resources over a BLE link using the GATT protocol. Usually, the master is also the client but that is not required.
  • Server devices have a local database and access control methods, and provide resources to the remote client. Usually, the slave is also the server (again, that is not required)
  • A device can switch between a Master and Slave but it cannot be both at the same time.
  • A device can be a Server and Client at the same time.
  • You can use read, write, notify, or indicate operations to move data between the client and the server.
  • Read and write operations are requested by the client and the server responds (or acknowledges).
  • Notify and indicate operations are enabled by the client but initiated by the server, providing a way to push data to the client.
  • Notifications are unacknowledged, while indications are acknowledged. Notifications are therefore faster, but less reliable.

Master vs Slave

  • So what is the difference between a master and a slave? First let me remind you that a master and a slave is not interchangeable with client/server.
  • A master (or Central) is the BLE device that initiates an outgoing connection request to an advertising peripheral device.
  • A slave (or Peripheral) is the BLE device which accepts an incoming connection request after advertising.
  • A slave can only be connected to one master, but a master can be connected to multiple slaves. In the smartwatch example, your iPhone can theoretically connect to multiple smartwatches at the same time. However, your smartwatch can only ever connect to one smartphone at a time.
  • There is no limit in the Bluetooth SIG on the number of slaves a master can connect to. Generally this will be limited by the BLE technology or Bluetooth stack you use.

Client vs Server

Let’s move on to the differences between a GATT server and a GATT client

  • A GATT client is a device which accesses data on the remote GATT server via read, write, notify, or indicate operations.
  • A GATT server is a device which stores data locally and provides data access methods to a remote GATT client.

You can easily see that it is possible for a device to be a GATT server and a GATT client at the same time. While it is most common for the slave (peripheral) device to be the GATT server and the master (central) device to be the GATT client, this is not required. The GATT functionality of a device is logically separate from the master/slave role. The master/slave roles control how the BLE radio connection is managed, and the client/server roles are dictated by the storage and flow of data.


Android is a mobile operating system (OS) currently developed by Google, based on the Linux kernel and designed primarily for touchscreen mobile devices such as smartphones and tablets.

Why select android?

Android is one of the leading smartphone OS and with the introduction of BLE support, many devices now implement BLE interface and radios. Cheap cost, easy programming and easy availability were the key factors to select the android platform for this project.


Firebase Logo

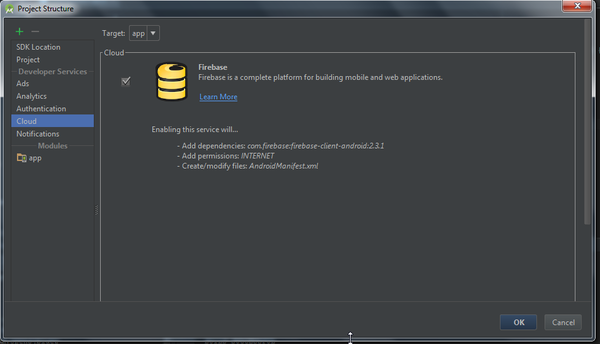

Firebase is a complete platform for building mobile and web applications. The Firebase is a scalable realtime and cloud-hosted database. Data is stored as JSON and synchronized in realtime to every connected client.

Why select Firebase?

To keep the system as near to real-time as possible, we faced the challenge of selecting a fast (real-time) database. Preliminary analysis led us to believe that firebase would be the ideal database since it provides us with authentication and hosting services for iOS, Android, and Web; in addition to serving our primary purpose of being realtime and scalable.

Team Members & Responsibilities


Team Schedule

SI No. Start Date End Date Task Team Member Status Actual Completion Date
1 03/12/2016 03/22/2016
  • Understanding the requirements and having initial team discussions on approach to be followed to carry out project
  • Forming sub-teams and assigning individual modules to each sub-team
- Completed 03/21/2016
2 03/22/2016 03/27/2016 Following up on hardware components procurement through team discussions, PCB design Dhruv Completed 03/26/2016
3 03/27/2016 03/29/2016 Finding out a way to program Bluefruit Module using SW(serial wire) interface. Dhruv Completed 03/30/2016
4 03/29/2016 04/1/2016 Implement HRS(Heart Rate Sensor) Profile on BlueFruit Module Dhruv, Surojit Completed 04/1/2016
5 04/1/2016 04/4/2016 Implement Nordic UART Service to send and receive data from UART ( Wireless UART ) and check communication using Nordic Master Control Panel Application Dhruv, Surojit Completed 04/4/2016
6 04/4/2016 04/10/2016 Create individual BLE profile for each sensor (Accelerometer, Temperature, Light etc.) Dhruv, Surojit Completed 04/12/2016
7 04/10/2016 04/25/2016 Create simple BLE Android application to receive sensor data in appropriate BLE service Dhruv, Surojit Completed 04/30/2016
8 04/25/2016 04/30/2016 Create user defined GATT services and broadcast individual sensor data in individual services and plot real time graphs on Android Surojit Completed 05/10/2016
9 04/30/2016 05/10/2016 PCB and Firmware testing and debugging, Pushing all data to the cloud Dhruv, Surojit Completed 05/20/2016

Parts List & Cost

Item# Part Desciption Vendor Qty Cost
1 Bluefruit UART BLE Module Adafruit 1 $23.75
2 SJOne board CmpE Department 1 $80
3 nRF51DK Mouser 1 $39
Total Cost $150

Design & Implementation

Hardware Design

Technical Specifications for Bluefruit BLE module

  • Nordic nRF51822 - ARM Cortex M0 core running at 16MHz
  • 256KB flash memory
  • 32KB SRAM
  • Peak current draw <20mA (radio actively transmitting/receiving)
  • Transport: UART typically @ 9600 baud with HW flow control (Configurable)
  • 5V-safe inputs
  • On-board 3.3V voltage regulation
  • Bootloader with support for safe OTA firmware updates
  • Supports Central and Peripheral mode
  • Supports Bluetooth Smart protocol stacks
  • On air compatible with nRF24L series

Front side breakouts

Bluefruit module front pin outs

Power pins

  • VIN - This is the power supply for the module, supply with 3.3-16V power supply input. This will be regulated down to 3.3V to run the chip
  • GND - The common/GND pin for power and logic

UART pins

  • TXO - This is the UART Transmit pin out of the breakout (Bluefruit LE --> SJOne), it's at 3.3V logic level.
  • RXI - This is the UART Receive pin into the breakout (SJOne--> Bluefruit LE). This has a logic level shifter on it, you can use 3-5V logic.
  • CTS - Clear to Send hardware flow control pin into the the breakou (SJOne--> Bluefruit LE). Use this pin to tell the Bluefruit that it can send data back to the SJOne over the TXO pin. This pin is pulled high by default and must be set to ground in order to enable data transfer out! If you do not need hardware flow control, tie this pin to ground it is a level shifted pin, you can use 3-5V logic
  • RTS - Read to Send flow control pin out of the module (Bluefruit LE --> SJOne). This pin will be low when its fine to send data to the Bluefruit. In general, at 9600 baud we haven't seen a need for this pin, but you can watch it for full flow control! This pin is 3.3V out

Other pins

  • MOD - Mode Selection. The Bluefruit has two modes, Command and Data. You can keep this pin disconnected, and use the slide switch to select the mode. Or, you can control the mode by setting this pin voltage, it will override the switch setting! High = Command Mode, Low = UART/DATA mode. This pin is level shifted, you can use 3-5V logic
  • DFU - Setting this pin low when you power the device up will force the Bluefruit LE module to enter a special firmware update mode to update the firmware over the air. Once the device is powered up, this pin can also be used to perform a factory reset. Wire the pin to GND for >5s until the two LEDs start to blink, then release the pin (set it to 5V or logic high) and a factory reset will be performed.

Reverse side breakouts

  • Reverse side pin outs for Bluefruit module is as per below.
Bluefruit module back pin outs
  • Opt VBat - One can solder on a JST 2-PH connector, this will let us easily plug in a Lithium Ion or other battery pack. This connector pad is diode protected so we can use both Vin and VBat and the regulator will automatically switch to the higher voltage
  • Opt. 32 KHz - It is for some funky low power work, in that case one can solder 32khz oscillator.
  • SWC - This is the SWD clock pin, 3v logic.
  • SWD - This is the SWD data pin, 3v logic.
  • 3Vo - This is the output from the 3V regulator, for testing and also if one really need regulated 3V, up to 250mA available
  • FCR - This is the factory reset pin. Tie this pad to ground while powering up the module and it will factory reset.

Hardware Interface

In this section, you can describe how your hardware communicates, such as which BUSes used. You can discuss your driver implementation here, such that the Software Design section is isolated to talk about high level workings rather than inner working of your project.

Software Design

Show your software design. For example, if you are designing an MP3 Player, show the tasks that you are using, and what they are doing at a high level. Do not show the details of the code. For example, do not show exact code, but you may show psuedocode and fragments of code. Keep in mind that you are showing DESIGN of your software, not the inner workings of it.

Needed Software tools to program nRF51822 Bluefruit module

  • nRFgo Studio
  • nRF51 Software Development Kit (SDKv8.0.0)

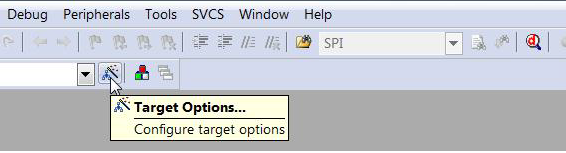

  • Keil IDE
  • S110 nRF51822 SoftDevice
  • S110 SoftDevice programming tools
  • Nordic Master Control Panel Android/iOS application
  • Segger J-Link Programmer

Basic theory behind BLE GATT Profile, Services, Characteristics and UUID

The Bluetooth Core Specification defines the Generic Attribute Profile (GATT) like this:

   "The GATT Profile specifies the structure in which profile data is exchanged. This structure defines basic elements
    such as services and characteristics, used in a profile."

In other words, it is a set of rules describing how to bundle, present and transfer data using BLE.

The Bluetooth Core Specification defines a service like this:

   "A service is a collection of data and associated behaviors to accomplish a particular function or feature.
    [...] A service definition may contain […] mandatory characteristics and optional characteristics."

In other words, a service is a collection of information, like e.g. values of sensors. Bluetooth Special Interest Group (Bluetooth SIG) has predefined certain services. For example they have defined a service called Heart Rate service. The reason why they have done this is to make it easier for developers to make apps and firmware compatible with the standard Heart Rate service. However, this does not mean that you can't make your own heart rate sensor based on your own ideas and service structures. Sometimes people mistakenly assumes that since Bluetooth SIG has predefined some services they can only make applications abiding by these definitions. This is not the case. It is no problem to make custom services for your custom applications.

The Bluetooth Core Specification defines a characteristic like this:

   "A characteristic is a value used in a service along with properties and configuration information about
    how the value is accessed and information about how the value is displayed or represented."

In other words, the characteristic is where the actual values and information is presented. Security parameters, units and other metadata concerning the information are also encapsulated in the characteristics.

A UUID is an abbreviation for Universally Unique ID and you will see this abbreviation a lot in the BLE world. It is a unique number used to identify services, characteristics and descriptors, also known as attributes. These IDs are transmitted over the air so that e.g. a peripheral can inform a central what services it provides. To save transmitting air time and memory space in your nRF51 there are two kinds of UUIDs:
1) 16-bit UUID : This is energy and memory efficient, but since it only provides a relatively limited number of unique IDs there is a rule; you can only transmit the predefined Bluetooth SIG UUIDs directly over the air. Hence there is a need for a second type of UUID so you can transmit your own custom UUIDs as well.
2) 128-bit UUID : Sometimes this referred to as a vendor specific UUID. This is the type of UUID you need to use when you are making your own custom services and characteristics. It looks something like this: 4A98xxxx-1CC4-E7C1-C757-F1267DD021E8 and is called the “base UUID”'. The four x’s represent a field where you will insert your own 16-bit IDs for your custom services and characteristics and use them just like a predefined UUID. This way you can store the base UUID once in memory, forget about it, and work with 16-bit IDs as normal. You can generate base UUIDs using nRFgo Studio. It is very easy and you can look in the Help menu to learn how.


This section includes implementation, but again, not the details, just the high level. For example, you can list the steps it takes to communicate over a sensor, or the steps needed to write a page of memory onto SPI Flash. You can include sub-sections for each of your component implementation.

  • In every BLE device, there are two mandotary services implemented.
  • The Generic Access Service contains general information about the device. You can recognize a characteristic holding the device name “OpenSJBluz”. The second characteristic holds the appearance value and in our case we haven't set the value to anything so it just shows 0x0000. The third characteristic holds various parameters used to establish a connection. You can recognise values from the #defines in the example called: MIN_CONN_INTERVAL, MAX_CONN_INTERVAL, SLAVE_LATENCY, and CONN_SUP_TIMEOUT. Here is a short explanation regarding these parameters.

The connection parameters for a BLE connection is a set of parameters that determine when and how the Central and a Peripheral in a link transmits data. It is always the Central that actually sets the connection parameters used, but the Peripheral can send a so-called Connection Parameter Update Request, that the Central can then accept or reject.

There are basically three different parameters:

  • Connection interval: Determines how often the Central will ask for data from the Peripheral. When the Peripheral requests an update, it supplies a maximum and a minimum wanted interval. The connection interval must be between 7.5 ms and 4 s.
  • Slave latency: By setting a non-zero slave latency, the Peripheral can choose to not answer when the Central asks for data up to the slave latency number of times. However, if the Peripheral has data to send, it can choose to send data at any time. This enables a peripheral to stay sleeping for a longer time, if it doesn't have data to send, but still send data fast if needed. The text book example

of such device is for example keyboard and mice, which want to be sleeping for as long as possible when there is no data to send, but still have low latency (and for the mouse: low connection interval) when needed.

  • Connection supervision timeout: This timeout determines the timeout from the last data exchange till a link is considered lost. A Central will not start trying to reconnect before the timeout has passed, so if you have a device which goes in and out of range often, and you need to notice when that happens, it might make sense to have a short timeout.

Depending on which platform you're working with, there can be platform specific recommendations or requirements on these. For iOS, Apple maintains a "Bluetooth Accessory Design Guidelines" document, which among other things includes rules on these parameters. Here is an example code to initialize GAP parameters.

BLE GAP Parameters Initialization
  • The second service is the Generic Attribute Service. Simply put, this service can be used to notify the central of changes made to the fundamental structure of services and characteristics on the peripheral. Short explanation here.

BLE Advertising Initialization

Here is an example code to initialize BLE advertising as a peripheral device.

BLE Advertising Initialization

Nordic UART Service Implementation

  • Nordic controller is providing wireless UART service which t emulates a serial port over BLE. This is intended to serve as a peer to the phone application 'nRF UART' (available for iOS on Apple Store and for Android on Google Play Store) and also to demonstrate the usage of proprietary (vendor specific) service and characteristics with the S110 SoftDevice.
  • The application includes one service namely the Nordic UART Service (UUID: 0x0001). The UUID of the Nordic UART Service is 6E400001-B5A3-F393-E0A9-E50E24DCCA9E.
  • This service exposes two characteristics - one for receiving and and another for transmitting, as seen from the nRF51822 application..
    • TX Characteristic (UUID: 6E400002-B5A3-F393-E0A9-E50E24DCCA9E): When the peer has enabled notification for the Tx Characteristic, the application can send data to the peer as notifications. The application will transmit all data received over UART as notifications.
    • RX Characteristic (UUID: 6E400003-B5A3-F393-E0A9-E50E24DCCA9E): Peer can start sending data to the device by writing to the Rx Characteristic of the service. ATT Write Request or ATT Write Command can be used. The data received is sent on the UART interface.

Brief description of important code lines in Nordic BLE module

Adding proprietary service and characteristic
  • The initialization of the proprietary service and its characteristics are done in ble_nus.c.
  • The Nordic UART Service is added to the S110 SoftDevice as follows.
   // Add custom base UUID.
   err_code = sd_ble_uuid_vs_add(&nus_base_uuid, &p_nus->uuid_type);
   if (err_code != NRF_SUCCESS)
       return err_code;
   ble_uuid.type = p_nus->uuid_type;
   ble_uuid.uuid = BLE_UUID_NUS_SERVICE;
   // Add service.
   err_code = sd_ble_gatts_service_add(BLE_GATTS_SRVC_TYPE_PRIMARY,
  • The RX characteristic is added to the SoftDevice as follows. Notice that the read and write permissions of the characteristic and its CCCD are set as 'open' - which means there are no security restrictions on this characteristic. Also note that the type of the UUID (ble_uuid.type) is the value that was returned in the call to sd_ble_uuid_vs_add(). The TX characteristic is also added in a similar way.
   ble_gatts_char_md_t char_md;
   ble_gatts_attr_md_t cccd_md;
   ble_gatts_attr_t    attr_char_value;
   ble_uuid_t          ble_uuid;
   ble_gatts_attr_md_t attr_md;
   memset(&cccd_md, 0, sizeof(cccd_md));
   cccd_md.vloc = BLE_GATTS_VLOC_STACK;
   memset(&char_md, 0, sizeof(char_md));
   char_md.char_props.notify = 1;
   char_md.p_char_user_desc  = NULL;
   char_md.p_char_pf         = NULL;
   char_md.p_user_desc_md    = NULL;
   char_md.p_cccd_md         = &cccd_md;
   char_md.p_sccd_md         = NULL;
   ble_uuid.type             = p_nus->uuid_type;
   ble_uuid.uuid             = BLE_UUID_NUS_RX_CHARACTERISTIC;
   memset(&attr_md, 0, sizeof(attr_md));
   attr_md.vloc              = BLE_GATTS_VLOC_STACK;
   attr_md.rd_auth           = 0;
   attr_md.wr_auth           = 0;
   attr_md.vlen              = 1;
   memset(&attr_char_value, 0, sizeof(attr_char_value));
   attr_char_value.p_uuid    = &ble_uuid;
   attr_char_value.p_attr_md = &attr_md;
   attr_char_value.init_len  = sizeof(uint8_t);
   attr_char_value.init_offs = 0;
   attr_char_value.max_len   = BLE_NUS_MAX_RX_CHAR_LEN;
   return sd_ble_gatts_characteristic_add(p_nus->service_handle,

Software UART Configuration

Bluefruit Pin Connection Table
Description Interface Bluefruit Port SJOne Board Port
Supply Voltage N/A Vcc 3.3 V
Ground N/A GND GND
Bluefruit Module UART3
P0.10 -> Rx
P0.9  -> Tx
Channel 1 -> TxD3
Channel 2 -> RxD3
MODE Data/Command mode selection MOD P2.0
DFU select Device Firmware Update DFU P2.1
UART initialization
  • All application initialization and handling of data sent and received through BLE and UART are done in main.c.
  • The UART initialization is done as shown in the code below. This code segment uses the UART driver provided in the SDK to perform the UART configuration. Note that the last parameter to the simple_uart_config function indicates that the application intends to use Hardware Flow Control. This means the RTS_PIN_NUMBER and CTS_PIN_NUMBER can be used as Ready-to-Send and Clear-to-Send pins respectively if you want Hardware flow control enabled. Here to communicate with SJOne board we have disabled HW flow control. The code below then enables the UART interrupt.
Handling of data received over BLE
  • When initializing the service in services_init() function, the application passes nus_data_handler to be used for handling the received data. When the Nordic UART Service indicates that there has been some data received over BLE from the peer, the same data is relayed to the UART. This function consists of the following piece of code.
   void nus_data_handler(ble_nus_t * p_nus, uint8_t * p_data, uint16_t length)
       for (int i = 0; i < length; i++)
Handling of data received over UART
  • The data received from the UART though undergoes certain checks before getting relayed to the BLE peer using the Nordic UART Service. The following code is inside the UART Interrupt handler which will be called each time a character is received over the UART. Each of these characters is buffered up into a string until a 'new line' character is received OR the size of the string exceeds the limit indicated by NUS_MAX_DATA_LENGTH. Once one of these two conditions is met, the string is sent over BLE using ble_nus_send_string function.
  • By default, the macro NUS_MAX_DATA_LENGTH is set to its maximum possible value, which is the maximum size of a notification packet, i.e BLE_ATT_MTU - 3, and should not be increased further.
   data_array[index] = simple_uart_get();
   if ((data_array[index - 1] == '\n') || (index >= (BLE_NUS_MAX_DATA_LEN - 1)))
       err_code = ble_nus_send_string(&m_nus, data_array, index + 1);
       if (err_code != NRF_ERROR_INVALID_STATE)
       index = 0;

Keil Projects Configuration for the SEGGER Debugger

1. Double click on the uvision project file to open the Keil uVision IDE.
2. Click "Target Options" on the toolbar or click "Project" menu and select "Options for Target".

Keil Target Configuration

3. Under the Debug tab in the Use list, select J-LINK / J-Trace Cortex option as shown in Figure below.
4. Click Settings as shown in Figure 36. Both the SEGGER Control Panel and the Keil Target Driver Setup will open.

Selecting JLink debugger in Keil

5. Click the Debug tab. Set Port to SW and Max Clock to 1 MHz. Make sure that SN and IDCODE are populated as seen in Figure below and click OK.

Debug settings

6. Select the J-Link device for target programming and provide the appropriate code memory algorithm.

Flash settings

7. If the J-Link serial number appears in the SN field, the device is properly installed. The default settings can be accepted by clicking OK, closing both the SEGGER Control Panel and Keil target Driver Setup.

Programming Bluefruit module using nRFgo Studio

  • The Nordic nRFgo Studio is a Windows® application that enables engineers to quickly explore and evaluate radio performance and functionality. The application supports a range of radio testing, including output power and sensitivity. Engineers can also easily configure and set-up the tests to match their own specific application requirements.
  • nRFgo Studio is designed to be used in conjunction with the Nordic nRFgo Starter Kit and Nordic nRFgo-compatible development kits. It supports auto detection of Nordic nRFgo motherboard and radio modules. It also support the nRF51 evaluation kits and programming nRF51 devices through SEGGER J-Link®
  • nRFgo studio provides a visual editor for creating GATT clients (Profiles) and GATT Services for the nRF8001 and generating the nRF8001 Setup as a header file. The nRFgo studio is used to visually configure the nRF8002 and generate the configuration for the nRF8002. The nRFgo Studio features for nRF8001 and nRF8002 are standalone and do not require the Nordic nRFgo Starter kit.
  • Here is a screen capture of this software to program Nordic board.
nRFgo Studio Configuration
  • As you can see in Device Manager(bottom left) section board will be detected as a 'Segger <number>' via nRF51DK debug connector.
  • In center section, you can see two regions. 1) Application firmware 2) SoftDevice firmware.
    • Application firmware is the user provided application(.hex) file, means whatever application you want to run in Nordic controller, you have to load that firmware file in application region only.
    • SoftDevice firmware is provided by Nordic which is used for BLE software stack library.

Generating custom BLE services using Bluetooth Developer Studio(BDS)

  • Nordic provides BDS plugin for nRF51822/52xx controllers, so you can generate custom UUID based BLE services in BDS and it will generate code for BLE service initialization.
  • Here we have created custom accelerometer sensor service in which Bluefruit will send accelerometer X,Y and Z axis data. This is the screen capture of Bluetooth Developer Studio project.
BDS Accelerometer service

Bluefruit software architecture

  • We have used following software architecture to program Bluefruit module. Our software design is fully real time functional based on different events so it is very easy to port with FreeRTOS implementation.
Bluefruit software architecture

Benefit of having an external 32kHz crystal

  • An external 32 kHz crystal will give lower average current consumption than using the RC oscillator, at the expense of cost and board space. There are primarily 3 reasons the current consumption is lower:
    • The RC oscillator must be calibrated every 4 seconds to be accurate enough. Calibration normally takes about 17 ms, and requires the 16 MHz to be running, giving an average current consumption increase of about 6-7 µA.
    • The receive window must be widened to account for the worse accuracy. Since the RC is 250 ppm, compared with typically 20-30 ppm for an external crystal, the radio must receive for a slightly longer time, giving an increase of average 1-2 µA.
    • The run current or the RC is 0.8 µA instead of 0.4 µA for a typical crystal.

In total, this gives 8-10 µA extra average current consumption. Depending on application, this may be enough to justify the cost and board space for a crystal.

Mobile & Cloud Software Design

The overall system architecture is shown in the diagram below :-

System architecture block diagram

We see here,

  1. The firebase backend
  • Create an account

On signing up, A new Firebase app will be created for you. This includes a unique database URL ending in firebaseio.com. This URL is used to store and sync data.

  • Storing Data

All Firebase database data is stored as JSON objects. There are no tables or records. When we add data to the JSON tree, it becomes a key in the existing JSON structure.

The data structure for OpenSJ Bluz is shown in the image below :-

S16 244 OSJBZ Firebase App Dashboard.png

Within the App Dashboard you can create, manage and delete Firebases apps. Clicking on a specific Firebase app lets you view and modify your app's data in realtime. In your app dashboard, you can also set Security and Firebase Rules, manage your app's authentication, deploys, and view analytics.

Data classification

The data is structured as a tree. 'OpenSJ Bluez' is the root key, under which 'sensor_readings' and 'sensors' are the branches. The data is structured in this way for ease of storage and access.

All the sensors which have data are identified by their BLE MAC address. The sensor readings stored are also segregated using the same BLE mac address. MAC addresses are used, since they are guaranteed to be different per BLE device.

Storing data

To push data to the cloud, a client uses '<firebase>/OpenSJ Bluez/sensor_readings/<device_mac>' as the key URL. One or more subscribers may then subscribe to this key to get the data pushed.

The data source also generates an entry under '<firebase>/OpenSJ Bluez/sensors/' with the sensor's mac to indicate it as an available online sensor.

Fetching Data

Data stored in a Firebase database is retrieved by attaching an asynchronous listener to a database reference. The listener will be triggered once for the initial state of the data and again anytime the data changes.

Subscribers can listen on the key url - '<firebase>/OpenSJ Bluez/sensor_readings/<device_mac>'. The firebase service will accept a callback with the listen request.

The callback function receives a DataSnapshot, which is a snapshot of the data. A snapshot is a picture of the data at a particular database reference at a single point in time. Calling val() on a snapshot returns the java object representation of the data. If no data exists at the reference's location, the snapshots value will be null

Read Event Types
  • Value

The value event is used to read a static snapshot of the contents at a given database path, as they existed at the time of the read event. It is triggered once with the initial data and again every time the data changes. The event callback is passed a snapshot containing all data at that location, including child data. Everytime a new data point is added, the callback function will return all of the data points.

  • Child Added

The child_added event is typically used when retrieving a list of items from the database. Unlike value which returns the entire contents of the location, child_added is triggered once for each existing child and then again every time a new child is added to the specified path. The event callback is passed a snapshot containing the new child's data. For ordering purposes, it is also passed a second argument containing the key of the previous child.

  • Child Changed

The child_changed event is triggered any time a child node is modified. This includes any modifications to descendants of the child node. It is typically used in conjunction with child_added and child_removed to respond to changes to a list of items. The snapshot passed to the event callback contains the updated data for the child.

  • Child Removed

The child_removed event is triggered when an immediate child is removed. It is typically used in conjunction with child_added and child_changed. The snapshot passed to the event callback contains the data for the removed child.

1. The BLE SJOne based sensor The SJOne board runs FreeRTOS and sends data over BLE by exposing the nordic UART service as explained in the previous section.

2. The Mobile clients

The android application subscribes to this service by opening a bluetooth GATT connection. The code snippet used to establish the connection is shown below

private void ConnectToSelectedDevice() {
       this.runOnUiThread(new Runnable() {
           public void run() {
               lMainTxt.setText("Connecting to device ...");
               if (mConnectedDevice != null) {
                   mConnectedDevice.connectGatt(getApplicationContext(), false, mGattCallback);

On requesting a connection, the android os calls back for events using the BluetoothGattCallback interface. This interface exposes the following callback. Additional information about the callbacks can be found in the android developer's reference.

void	onCharacteristicChanged(BluetoothGatt gatt, BluetoothGattCharacteristic characteristic)
Callback triggered as a result of a remote characteristic notification.

void	onCharacteristicRead(BluetoothGatt gatt, BluetoothGattCharacteristic characteristic, int status)
Callback reporting the result of a characteristic read operation.

void	onCharacteristicWrite(BluetoothGatt gatt, BluetoothGattCharacteristic characteristic, int status)
Callback indicating the result of a characteristic write operation.

void	onConnectionStateChange(BluetoothGatt gatt, int status, int newState)
Callback indicating when GATT client has connected/disconnected to/from a remote GATT server.

void	onDescriptorRead(BluetoothGatt gatt, BluetoothGattDescriptor descriptor, int status)
Callback reporting the result of a descriptor read operation.

void	onDescriptorWrite(BluetoothGatt gatt, BluetoothGattDescriptor descriptor, int status)
Callback indicating the result of a descriptor write operation.

void	onMtuChanged(BluetoothGatt gatt, int mtu, int status)
Callback indicating the MTU for a given device connection has changed.

void	onReadRemoteRssi(BluetoothGatt gatt, int rssi, int status)
Callback reporting the RSSI for a remote device connection.

void	onReliableWriteCompleted(BluetoothGatt gatt, int status)
Callback invoked when a reliable write transaction has been completed.

void	onServicesDiscovered(BluetoothGatt gatt, int status)
Callback invoked when the list of remote services, characteristics and descriptors for the remote device have been updated, ie new services have been   discovered.

Building the Android Application

The block diagram of the the mobile application is as shown below :-

Mobile application block diagram

The mobile application is a simple piece of software which consists of 3 parts.

1. The BLE interface The BLE interface communicates with the nordic BLE peripheral using the nordic UART service. For this it must subscribe to the characteristic notifications. This is done by the following code snippet.

  String lResult = gatt.writeDescriptor(gattDescriptor) ? "SUCCESS" : "FAILURE";
  gatt.setCharacteristicNotification(lChar, true);

On successful subscription to the service, the onCharacteristicChanged callback is called by the OS and data can be read using the characteristic parameter's methods.

2. The UI The android UI is built using Android studio's built in UI builder. We have utilized the MPAndroidChart library, to generate a graph of the sensor readings. A 'SurfaceView' widget is used to implement the bouncing ball activity, since it provides good framerate performance in draw intensive operations.

3. The cloud service The firebase cloud service integration is extremely easy, since android studio gives us a built in option to add it to the android project. This can be done by selecting the option as shown in the screenshot below.

Firebase Integration

Once the firebase sdk is referenced in the android project, it must be initialized at the start of the app. This is done by adding the following code snippet.


After initialization, the firebase instance can be referenced from within the app by using the following convention -

       mFirebase = new Firebase(lFirebaseURL);
       mFirebase = mFirebase.child(pContext.getString(R.string.firebase_opensj_blues_sensors));

Here, lFirebaseURL is the firebase access url and R.string.firebase_opensj_blues_sensors is the tree path to store/retrieve data from.

Testing & Technical Challenges

UART Communication Challenge

  • Problem - Tried to communicate between SJOne and Bluefruit module over UART interface with built-in firmware, but not able to receive data correctly as HW flow control was enabled in Nordic firmware.
  • Solution - Flashed new firmware in Bluefruit module with turning off HW flow control for UART interface.

nRF51822 Firmware Update Challenge

  • Problem - Updated inbuilt firmware which comes with Bluefruit module using Device Firmware Update service to turn off hardware flow control in UART interface, it updates successfully but then that firmware was not working as expected because of crystal settings which are being used for Bluetooth Softdevice drivers.
  • Solution - DFU service was not available to use as we have updated firmware with wrong settings so need to upload now new firmware using Serial Wire Debug(SWD) Programmer. Then we have updated new firmware with crystal settings "NRF_CLOCK_LFCLKSRC_RC_250_PPM_250MS_CALIBRATION" (On chip Low Frquency Crystal) using nRFGoStudio Software. Then each time we have used SWD programmer to flash any new version of firmware.

Receiving data at higher data rate

  • Problem - We were receiving sensor data at very low speed(80 bytes in 500 ms) and we wanted sensor data in real time(80 bytes in 20ms) to be plotted on the graph.
  • Solution - In normal BLE peripheral device, to decrease power usage, the connection interval would be in between 500ms-4000ms. Because of this connection interval we were getting sensor data at lower rate. So we have decreased connection interval to 20ms in order to get sensor data at its maximum throughput level.

Maintaining BLE connectivity with device

  • Problem - Since android activities are self contained entities, objects cannot persist between invocations of an activity. This causes the bluetooth gatt object to get destroyed and bluetooth connectivity is lost.
  • Solution - Pass the connected device's MAC address to the next activity using an Intent.extra field and re-establish connectivity with the device in the next activity

Debugging BLE connectivity

  • Problem - Cannot see if our BLE implementation is actually sending/recieving data.
  • Solution - Use nrfMaster control panel, as a reference implementation and tool


Beginning with a goal to build an end-to-end sensor data collection and analysis system, we have come very close to what we wanted to achieve. Real-time data over the internet is still a very young concept and we believe that we have made substantial progress in the understanding of the difficulties, tricks, challenges and their solutions and workarounds. Since at this point in time, there are many budding IoT companies, almost all of them looking for this kind of a solution, I believe that this project enhances our chances of understanding the problem at a much larger scale and hopefully giving us insight to find the solutions.

Adding geo-location data, to sensor readings is a next step for this project and will enhance the applications immensely. As personal learning objectives, we learnt how Bluetooth low energy works; both at the hardware level and at the high level. Implementing ble services on the hardware and connecting and retrieving data on android were both challenging and intriguing problems. We also learnt the techniques of FreeRTOS programing to generate and transmit sensor data. I am extremely pleased with what I have made looking at the responsiveness of the data on the mobile app.

A few screenshots of the finished app follow.

Streaming sensor data over the network
Streaming sensor data over Bluetooth Low Energy

Project Video

Project Source Code



We would like to thank Preet for teaching the concepts in a very practical sense in the class. It really helped us in the implementation and the testing of the project. All the team members worked really hard towards this project and this motivated us in accomplishing the team goals every week. All in all, a great course which required us not to memorize, but to think in a practical way. Thanks again Preet to introduce this course to the major. This will surely be a major benefit in building our career!

References Used
