Rubik's Cube Solver


The Rubik’s Cube is a common 3-D combination puzzle known and loved by people of all ages. The mathematics of Rubik’s Cubes has been explored in great detail ever since the beginning of their production in the 1980’s.The aim of the project is to develop Rubik’s cube solving algorithm to solve the Rubik’s cube in shortest possible time without any human intervention. The project explored areas of - research and development, testing and debugging, and documentation.

Objectives & Introduction

The goal of the project is to write the software and create the hardware required to autonomously solve the Rubik’s cube. The first part of this project consisted of research on the mathematics of the Rubik’s Cube and how that is used for various solutions to the cube. Next, the focus was put on making a Windows based GUI through which the user can input the arrangement of colors for all the faces on the cube. Finally, the commands to move the robotic arms are send via the sjone board to the servos.

Team Members & Responsibilities

  • Nikhil Chaturvedi
    • Cube solving algorithm
    • Connectivity from console to SJOne board
    • Python GUI
  • Preeti Benake
    • Build the cube solving claws
    • Interface cube solving algorithm with claws
    • Updating the wiki page
  • Rajashree Kambli
    • Connectivity from Console to SJOne board
    • Updating the wiki page
  • Shahid Qureshi
    • Build the cube solving arms

Team Schedule

Sl.No Start Date End Date Task Status Actual Completion Date
1 02/28/2015 03/02/2015 Finalized high level design architecture Completed on time 03/02/2015
2 02/28/2015 04/17/2015 Investigating Robotic arm design; eliminated few hardware options. Completed on time 04/17/2015
3 03/07/2015 03/09/2015 Investigated interfacing console with SJOne board. Completed on time 03/09/2015
4 03/10/2015 03/14/2015 Investigated BlueZ Bluetooth stack for Python and C.(Decided not to go ahead with this method) Completed on time 03/14/2015
5 03/29/2015 04/17/2015 Implementing Bluetooth interfacing of SJOne board using C BlueZ and Console using PyblueZ (Decided not to go ahead with this method) Completed on time 04/17/2015
6 04/18/2015 04/20/2015 Order and test the hardware components (Had delays getting parts from eBay) Completed on time 04/27/2015
7 04/22/2015 05/19/2015 Interfacing the motors to SJOne board Completed 05/20/2015
8 04/10/2015 04/24/2015 Investigating and implementation of Rubik cube solving algorithm (Kociemba's algorithm) Completed 04/27/2015
9 04/10/2015 05/08/2015 Implementation of Rubik cube solving algorithm (Custom). This algorithm replaced the other algorithm Completed 05/09/2015
10 04/28/2015 05/15/2015 Build the Robot arm and test the controls Completed 05/21/2015
11 05/08/2015 05/20/2015 Implement Bluetooth connectivity module Completed 05/20/2015
12 05/11/2015 05/22/2015 Testing Completed 05/23/2015

Parts List & Cost

Item# Part Desciption Vendor Qty Cost
1 Servo Motors 6 $56.58
2 Robotic Claw 2 $39.92
3 Speed Rubik cube 2 $21.48
4 Turnable table for Motors 1 $7.99
5 Robotic Claw stands 2 $7.52
6 Wires and other Accessories --- $16.5

Design & Implementation

Hardware Design

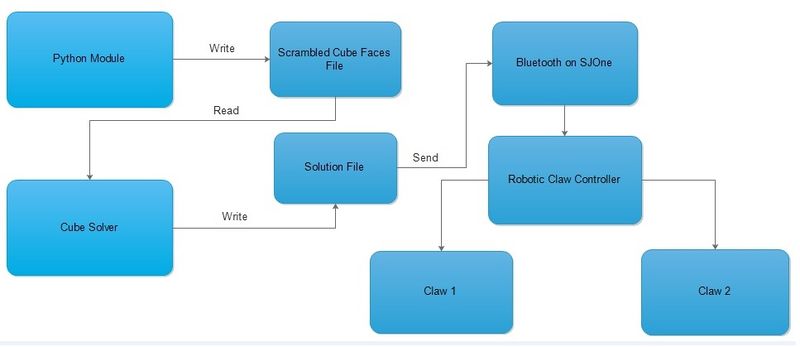

The following system block diagram represents all the modules designed and interfaced with each other to form a complete working system that helps solve the cube.
System Block Diagram

Hardware Interface

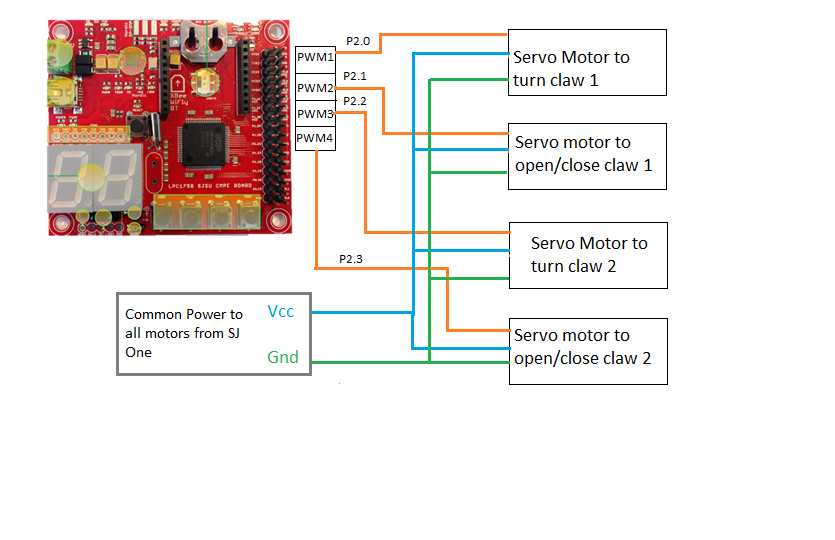

The hardware implementation includes the the interfacing the robot claws to SJ One board. The following block diagram represents the connection of the motors to the board. Motor Connection with SJ One

Servo Motor Pin Connectivity Table
Description Motor Pin SJOne Development Board Pins Commands Note
Holder Servo Motor
 P2.0 and P2.2 PWM
 PWM motor(PWM::pwm1, 50);
 PWM motor(PWM::pwm3, 50);
 Sets PWM signal of 50 Hz
 Sets PWM signal of 50 Hz
 Opening and Closing the claw.
Tuner Servo Motor
 P2.1 and P2.3 PWM
 PWM servo(PWM::pwm2, 50);
 PWM servo(PWM::pwm4, 50);
 Sets PWM signal of 50 Hz
 Sets PWM signal of 50 Hz
 Turn the claw clockwise and anticlockwise.

Robot claw interface

Servo Motor

Motor :The motors used to achieve the movement are MG995 Servo motor. Servo motors are preferred due to the precise movements of the arms by 90 degree, which was required. The rotation was controlled by the PWM value passed to the particular motor. The open and close function of the claw was controlled by one motor(holder motor). The clockwise and anticlockwise rotation of the claw was controlled by the other motor(turner motor). The figure depicts the claw attached to the motor (turner motor).

Robot claw

Robot Claw : We choose to use the Dangu Claw because of the design and features. It was designed to in corporate both the motors on. One for opening and closing operation and the other for turning the claw. The features of the claw are as follows,

  • The Dagu Aluminum Gripper (with Servos) is made from 3mm thick aluminium
  • The gripper will open in excess of 50mm
  • The servos provide 2.3Kg/cm of torque at 6V. and 1.8Kg/cm@3.3V
  • It comes pre-assembled in a plastic bag
  • Servo Features : Standard PWM Interface

Bluetooth Interface

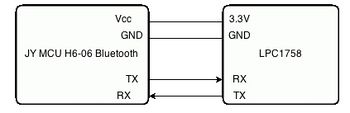

Bluetooth Connection

Basic Bluetooth module (JY-MCU HC-06) was borrowed from Sreeharsha to use in the project. This particular series (HC-06) has four pins RX, TX, VCC and GND works in slave mode.
Note: Although VCC pin indicates that the module works with 3.6-6V, connecting it to the LPC1758 3.3V output worked fine.

This project uses UART3 for communication.The setting for UART is: Baud Rate - 115200, no parity, one start bit and one stop bit.

Software Design

Cube Solving Algorithm

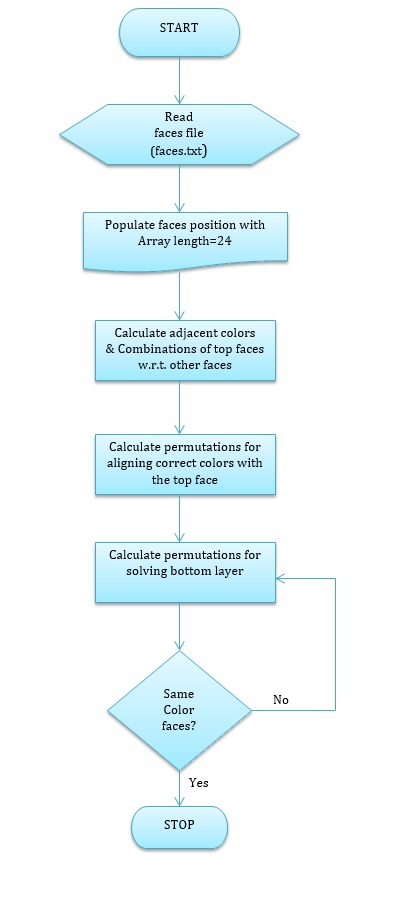

Flowchart of cube solving algorithm

Integrating the Motors and Claws

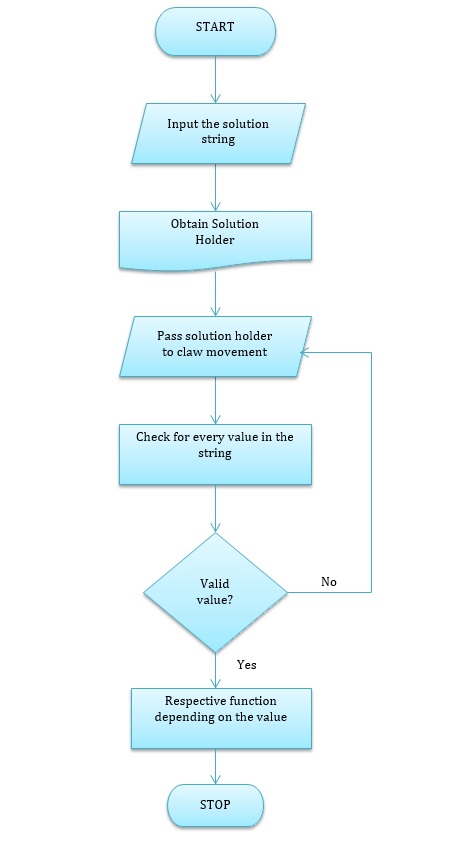

Flowchart of cube solving Claws


Cube Solving Algorithm

The cube algorithm takes a scrambled cube and give a solution string. The steps involved in solving the cube is as follows,

1. Read the scrambled colors from the text file that the Python GUI module wrote to.
2. Read these values into the main position holder array.
3. Hold a reference to the adjacent colors with respect to the top face.
4. Calculate the permutations for aligning the front, back, left and right faces to the top face. Calculate the movements and the number of rotations required to make these movements
5. Make changes to the main position holder after getting the movements based on the permutations.
6. Calculate the permutations for solving the bottom layer which consists of colors on bottom, left, right, front and back faces.
7. Calculate the the rotations for this solution.
8. Check if all the faces contain just one color. If yes, goto step 9, else goto step 6.
9. Stop the algorithm.

Python GUI Module

We need a way to have the cube solving algorithm know the scrambled cube colors. While we could easily do this by manually changing these values for every run in the solver algorithm, this does not make for a good system design. The Python module presents a GUI for each face of the cube using which we select the colors of them based on a scrambled cube. After reading each face, we check if the total number for each color is the same. If yes, we write the faces of the cube to a file on the local machine.

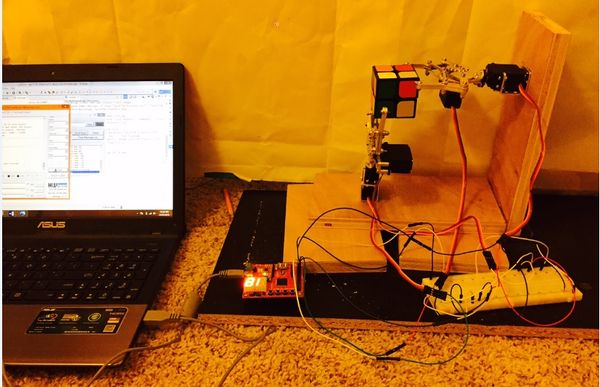

Cube rotating arms

The robotic arms take the solution from the cube solving algorithm and convert them into the corresponding movements. We made use of two robotic claws, with two servo motors for each claw. This gives us four degrees of freedom to turn the cube. Here is how the arm functions,

The claws are mounted at 90 degrees to each other and the rotations are as follows,

1. The right side is turned clockwise and counter clockwise.
2. The bottom side is turned clockwise and counter clockwise.
3. To turn the top face and left face, the whole cube is rotated and a combination of the right claw and the left claw is used.

The cube rotating algorithm reads the solution file that the cube solving algorithm wrote to and converts the characters into a simpler notation for ease of programming.

Bluetooth module

This module sends the solution string from the solving algorithm to SJOne board. The sender is written in Java, which searches for Bluetooth devices in its vicinity and the service of each device. On SJOne board, we have a Bluetooth device which is set at 115200 Baud rate and listens for incoming connections and reads bytes of data sent from the Java console. We used Blue cove stack for our implementation.

Testing & Technical Challenges

1. The most challenging part of the project was to get the solution to a scrambled cube. Initially we chose to solve a 3x3 cube but we chose a 2x2 cube instead because solving a 3x3 cube took a lot of time and with the limited time we had, we could not spend more time trying to solve instead of actually getting to a solution.

2. The 2x2 cube solving algorithm used too much of memory allocation for calculating a lot of combinations for aligning top face with the adjacent sides. Due to this we could not run the algorithm on SJOne board. Instead, we chose to run the algorithm on a PC and send the solution string to the board to run the servo motor controller.

3. We have two robotic arms which can turn left/right and top/bottom. Due to this, there we had to figure out a way to rotate the other remaining faces using a combination of the turns of the two claws.

4. We had problems using the BlueCove Bluetooth stack in Java to connect to SJOne board which had a Bluetooth device on board. We were unable to get the push service from the device and resorted to using BlueTerm application on Android for connecting with the code that is running on SJOne board. We are still working to find a solution to this, but since the other much important modules took up time, we could not give enough time to this.


This project turned out to be more complex than we initially thought it would be. Through good engineering practices we could solve most of the problems we encountered and eliminated many design ideas based on these solutions. We learnt many technologies from scratch like programming in Python for example and learnt many good programming practices in C
