Project Title

Meeting Room Automation


To implement a wireless automated meeting room reservation system using Nordic Wireless modules and SJONE boards. Each SJOne board will communicate with a central Board to convey the status of meeting room in use through. We have decided to use Nordic wireless because of the following advantages it offers-

  • Low Price
  • Longer range than bluetooth
  • Low power consumption
  • Easy to use and setup

Objectives & Introduction

The automated meeting room reservation is achieved through the built-in Nordic Wireless interface. Each board acts as a node in the mesh network which sends and receives information and communicates with a central node. The following objectives are to be implemented:

  • Auto detection of room use
  • Address nodes with auto-replies
  • Track the rooms in use at the central server.

Team Members & Responsibilities

1. Sumeet Bhagwat

  • Nordic Wireless Communication among nodes
  • Integration of PIR sensors with Nordic
  • Assembly setup in test environment
  • Update Project Wiki

2. Ajinkya Khasnis

  • Nordic Wireless Communication among nodes
  • Develop Master Node Display App
  • Assembly setup in test environment
  • Update Project Wiki

3. Atresh Gummadavelly

  • PIR sensor Interface and code to detect motion
  • Integration of PIR sensors with Nordic
  • Assembly setup in test environment
  • Update Project Wiki

4. Sujay Kulkarni

  • PIR sensor Interface and code to detect motion
  • Hardware Assembly with USB Power Supply
  • Assembly setup in test environment
  • Update Project Wiki


Because of issues with sensor reliability and few software glitches in wireless communications, the tasks 2 and 3 take the maximum amount of time.

Week# Start End Task Actual
1 Apr 7, 2015 Apr 21, 2015 Identify hardware requirement, Order parts, Researching about datasheets Complete
2 Apr 21, 2015 May 10 , 2015 Configuring Nordic communication peripheral and testing with wireless.h API to send and receive a message. Complete
3 Apr 21, 2015 Apr 28, 2015 Test the motion sensors - Interfacing the PIR sensors to Sjone board, test them Developing an Algorithm Complete
4 May 12, 2015 May 18, 2015 Integrating Nordic and motion sensors and testing the entire setup. Complete
5 May 12, 2015 Apr 18, 2015 Working on Display App for Master Node. Complete
6 May 18, 2015 May 20, 2015 Hardware Setup in test environment. Complete
6 May 5, 2015 May 12,2015 Writing the project report and updating the wiki page accordingly. Complete
7 May 22, 2015 May 22, 2015 Project Demo. Complete

Parts List & Cost

Item Price Quantity Price
SJ One Board $80 4 $320
PIR sensors $7.49 5 $37.5
USB Battery Packs $10 3 $30
Nordic Wireless Antenna $3 3 $9
Total (Excluding SJOne) $76.5

Design & Implementation

System Overview

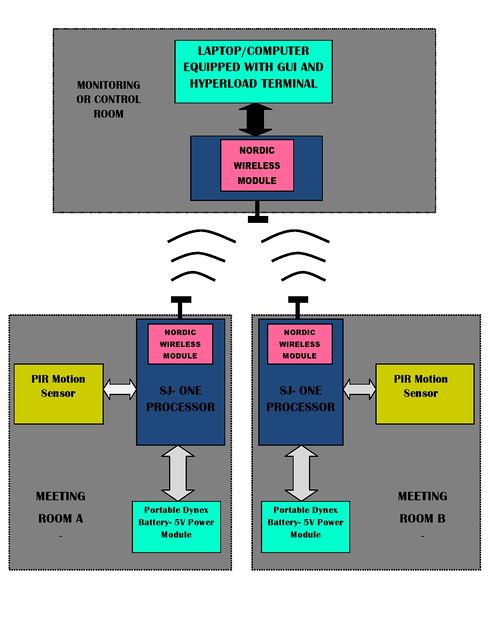

Overall System Diagram

The system diagram evidently shows that the project setup will be implemented with the help three separate rooms. One room will serve as a central monitoring or the server room while the other two rooms will be for meeting or conference sessions. Every meeting room will be equipped with an interface of a SJ-ONE microcontroller and a PIR sensor.

The interface is powered with the help of a 5V portable Dynex power unit which will be connected to the SJ-ONE board with the help of a simple USB to min-USB cable. The monitoring room will consist of a laptop-SJ One microcontroller interfaced setup which will help us obtain and analyze the motion detection values and deduce any movement that occurs in the room from it.

The PIR motion sensors will detect movement in the meeting rooms and accordingly communicate with the central SJ-One board through the on-board Nordic Wireless modules on each SJ-One board. Once the data is received, it will be updated on the GUI(WPF on Laptop) that has records of all the meeting rooms that are currently or had been occupied. The user can monitor this data and keep track of all the rooms being occupied , hence , eliminating need of manually verifying the occupancy of every meeting room of a certain building or structure.

The design and implementation of the project has been divided into sections pertaining to hardware and software design as given below:

Hardware Design

PIR Motion Sensor

PIR Motion Sensor plays the primary role of detecting motion in the vicinity, in this case,a room. It relies on heat changes in the environment by using temperature variations as an indicator. The sensor has 3 pins: Vcc, GND and a GPIO which can be used while interfacing with a micro-controller. Detection takes place in conical area(~120 degrees) in front of the sensor and the range is approximately 30 feet. This device is power compatible with 3.3V/500uA and 5V/800uA as well and will be interfaced with each of the SJ-One boards that are being used in this project.

PIR Motion Sensor

Internally, the PIR sensor consists of a crystal which is sensitive to IR radiation of particular frequency, which is emitted by heated objects. It uses a lens to focus this IR radiation onto the crystal. output signal from this crystal is given to an amplifier and comparator circuit. This makes the output available in digital form.

PIR Sensor Assembly

Nordic Wireless Module

The Nordic module is an on-board wireless module which is configured to initiate wireless data transfers. Here, the modules are implemented with the purpose of establishing wireless communication with other SJ-One boards which will help send and receive the PIR sensor data resulting from motion detection. Nordic wireless module uses RF transmission with 2.4GHz ISM band. Along with RF transmission, it has a significant feature of operating at ultra-low power range of 1.9-3.6 V supply voltage (with 5 V tolerant pins) and 11.3mA Tx with 1mW output power.

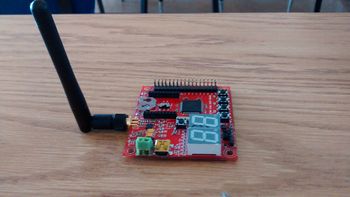

SjOne with Antenna

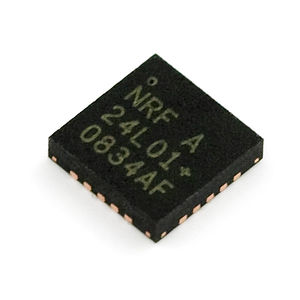

On-Board Nordic Wireless Module

Portable Dynex 5 V battery

Every SJ-One board in the meeting rooms is powered by using 5 V portable Dynex battery. It can be interfaced with the board using the USB 3.0 to mini USB converter cable. This device is power compatible with the SJ-One board since with input specs of 5V/1000mA and output specs of 5V/1000mA. Charging power of this device can range upto 2200mAh. It is easy to charge, not so expensive and eliminates the need for separate power supply module design. Also makes the entire hardware assembly modular.

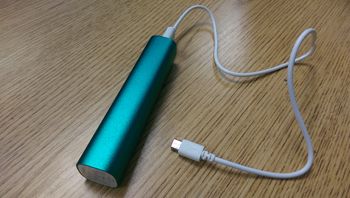

Dynex Portable battery

Hardware Interface

The hardware interfacing required for this project is significantly less since only the external PIR sensors need to be interfaced to the SJ-ONE board. The Nordic transceiver is an on-board module responsible for wireless transmission. The details of wireless transmission and mesh networks is also described in this section.

SJ-ONE and PIR Sensor Interface

The interfacing of PIR sensor with the SJ-One board is fairly simple as it involves only 3 connecting wires and pins namely : Vcc, GPIO and GROUND, as explained in the hardware design section. The details have been provided below for clarification:

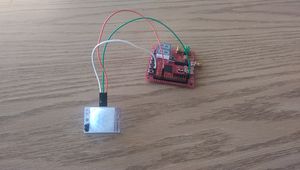

SJ-ONE and PIR sensor interface

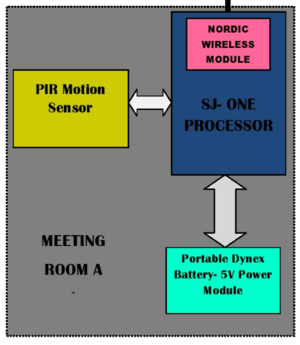

Overview of the interface
SJ-ONEPIR Motion Sensor
VCC (5V) VCC (5V)
P1.20 OUT

Software Design

The project has been divided into three sub modules for software design. The three main components of this system are -

  • Slave Node
  • Master Node
  • Master Display App

Slave Node

This is the node which monitors the PIR sensor for traces of activity. Whenever the PIR detects activity for a set number of times, the slave sends a Nordic message to master indicating that the room it is located in is now active. If the PIR sensor gives no activity signal for some time, the slave sends a message to the master saying the room is no longer in use and can be occupied.

Slave Node Flowchart

Flowchart - Slave Node

Master Node

A Master node is the SjOne board that receives all the messages from the active nodes. All salve nodes, transmit their Nordic messages to his particular node. This board continuously monitors the Nordic channel to check for any messages. Whenever any new message is received, a status message is sent to the display app to update its UI accordingly. It also has a watchdog task which periodically checks if the known nodes are still active.

Master Node Flowchart

Flowchart - Master Node

Master Display App

To provide a better user interface for this project, we decided to create a small app to display the latest status of Meeting room activity in easy to understand intuitive UI. This app was developed using C# .Net and WPF framework. It can also be replaced by a mobile app in future. It is similar to a hyperload terminal but looks cooler. Here are a few screenshots of the application in action -

Display App 1 - start up: No activity Detected
Display App 2 - Board Detected
Display App 3 - Room Status Received (Occupied)
Display App 4 - Room Status Received (Inactive)
Display App 5 - Board Connection Lost

Each status has been color coded for easy readability. The Master Display app monitors the master receiving node for the following statuses -

Status Description Colour Code
BOARD_ACTIVE The master has discovered a new node which just communicated with it.

This board is still functional.

ROOM_ACTIVE Some Activity has been detected in this room. It must be occupied. Orange
ROOM_INACTIVE No activity in room. It can be occupied. Green
BOARD_INACTIVE Connection has been lost with board. It was active some time ago. Red

Master Display App Flowchart

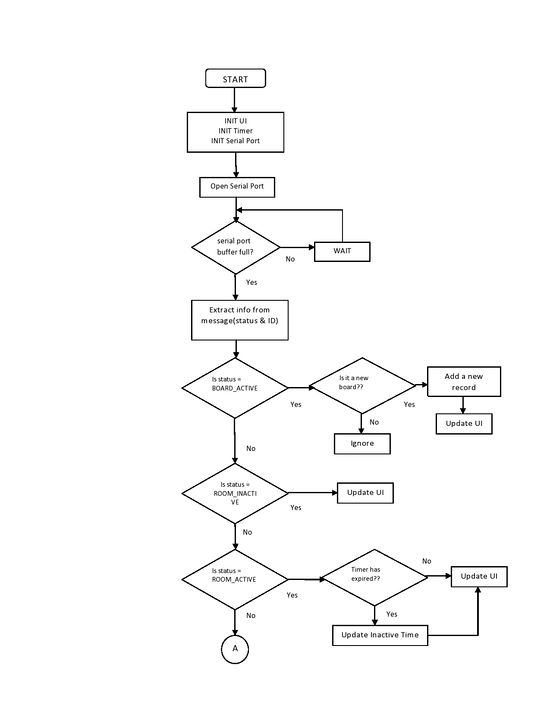

Flowchart - Master Display App

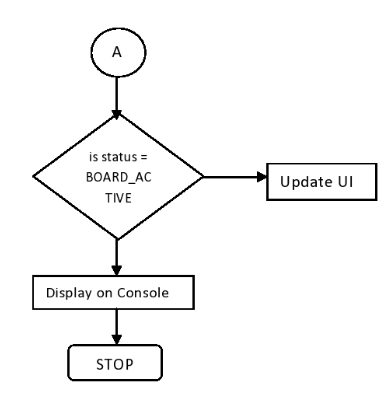

Flowchart- Master Display App(continued)

Future Enhancements

The project can be modified in future by incorporating the following changes -

  • Centralised reservation of meeting rooms through the Master Display App
  • Interfacing of meeting room equipment such as lights, projectors, curtains to slave node
  • Master display app can be designed as web enabled mobile based app which can be accessed on the go.

Testing & Technical Challenges

We faced a few minor problems in course of this project. They are classifed as hardware related and software related and listed below

Hardware Interfacing

PIR Sensor Reliability:

Some sensors were not giving reliable output. We tried tuning them by adjusting their sensitivity and the time period for which it remains high after detecting motion. Our observation was that sensors from Radioshack (which did not have these adjustments) were more reliable.

Software Design

Interrupt Or Polling?

We tried the hardware interface using interrupts as well. However the number of false positives increased in interrupts. This did not provide much reliable information to the master. So we decided to use the polling approach where we sent a Nordic message to the master only if the sensor output was consistent for some count. This did add a little overhead to the slave board, but it provided much better results. There was no other task the slave was running so we went for the polling approach.

Message Loss between Master Node and Control App:

We designed an application that communicated with SJOne board through serial port. In our application, we handled the data transmitted through UART0 port of SJOne master board. Because the Each type of message had different size (in bytes/chars), some part of messages was getting lost. As a result the control app was not updating the display. We solved this by padding each message with extra chars so that they were of the same size. Then we configured the master app to trigger an event to handle the data once we received at least two messages.


Nordic wireless provides a good alternative for wireless communications. It is sufficiently reliable to send small messages over moderate distances. We were able to achieve our project goal by using Nordic wireless protocol. We learnt how to interface sensors with MCU and read their values. We also learned how to write low level software to interact with hardware. By applying the freeRtos knowledge we gained in class, we were able to put together a system consisting of various modules to act in sync to achieve project objective.
