F22: Embedded Gamers

Guardians of the Galaxy

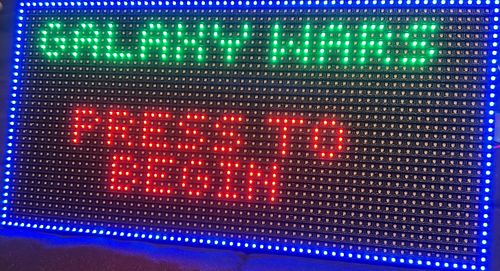

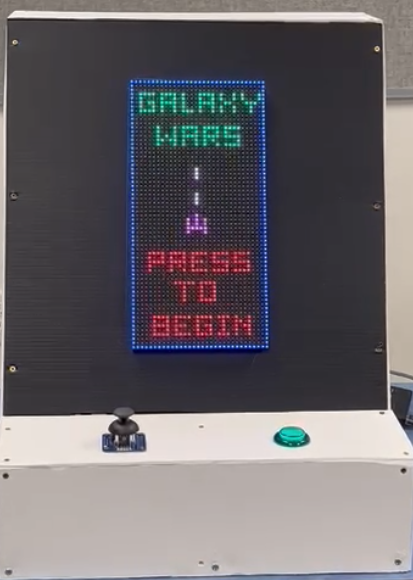

Start Screen

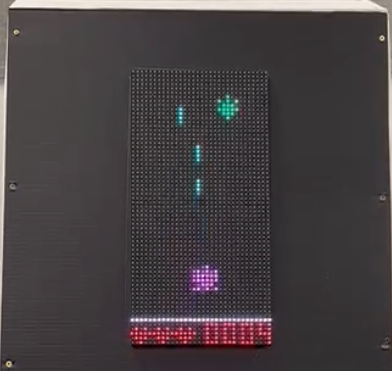

Game Play

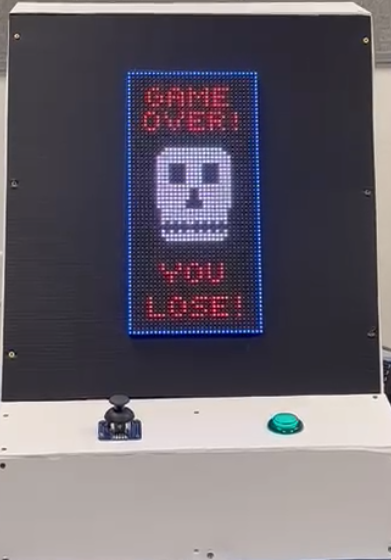

End Screen

Abstract

A horizontal type of space invader game. Players can control the spaceship on the screen composed of an LED matrix in a rectangular shape. The spaceship can shoot horizontally from left to right in order to destroy its enemies. The entire map will flow in the opposite direction of where the spaceship is flying. The speed of the map flow and the number of enemies will increase at higher difficulty levels. The spaceship takes damage from colliding with enemies themselves or their bullets. The game will end when the health of the controlled spaceship is depleted.

Objectives & Introduction

Technical Responsibilities

Technical Roles
Game Logic Development	Bruce Jiang
LED Display Driver	Bruce Jiang
Joystick Controller Driver	Bruce Jiang
MP3 Decoder	Phil Bloxom
Bluetooth	Ritu Patil
Enclosure	Phil Bloxom
Hardware Integration	Bruce Jiang & Phil Bloxom

Administrative Responsibilities

Administrative Roles
Team Leader	Ritu Patil
Git Repository Managers	Bruce Jiang
Code Reviewers	Phil Bloxom
Wiki Report Manager	Bruce Jiang
Bill of Materials Manager	Ritu Patil

Schedule

Week#	Start Date	End Date	Task	Status
1	10/03/2022	10/8/2022	Read previous projects, gather information and discuss among the group member Create GitLab repository for project	Completed Completed
2	10/10/2022	10/15/2022	Order necessary parts	Completed
3	10/17/2022	10/22/2022	Read and familiarize with LED Matrix Datasheet	Completed
4	10/31/2022	11/05/2022	Develop graphics driver for LED matrix and implement initial game objects Research how to create objects pattern for display from PNG	Completed Completed
5	11/07/2022	11/12/2022	Finalize wiki schedule Display objects on screen Develop ADC driver for joystick interfacing control dynamic movement of player spaceship Create screen scenes in 32x64 matrices	Completed Completed Completed Completed
6	11/14/2022	11/19/2022	Integration of circuit boards and microcontroller Develop enemy spaceships game algorithm Control dynamic movement of player spaceship. Create MP3 Driver	Completed Completed Completed Completed
7	11/21/2022	11/26/2022	Integrate game logic flow from start to end Develop missile collision and player life algorithm Integrate game sounds with game logic	Completed Completed Completed
8	11/28/2022	12/03/2022	Integrate subsystem Finalizing the video game Update the wiki page	Completed Completed Completed
9	12/05/2022	12/10/2022	Address bugs during testing of integrated system Test pause/play functionality	Completed Completed
10	12/11/2022	12/11/2022	Final Demo Update Gitlab repo with final code Update test video Update the wiki page	Completed Completed Completed Completed

Bill of Materials (General Parts)

Part Name	Part Model & Source	Quantity	Cost Per Unit (USD)
Micro-Controller SJ2 Board	SJ2 Board (Purchased from Preet Kang)	1	50.00
RGB LED Matrix	64x32 RGB LED Matrix Panel	1	44.95
Power Supply	Universal AC/DC Adapter 3V ~ 12V	1	15.98
IDC Socket Male	IDC Socket Male	1	0.3
HC-05 Bluetooth	HC-05 Bluetooth	2	10
Analog Joystick	Analog 2 Axis x-y Thumb Joystick	1	6

Overall Design

Hardware Design

LED Matrix Rear

Hardware Interface

• LED Matrix Display: 13 GPIO channel on SJ2 (1)
• Joystick connection: 2 ADC channel on SJ2 (1)
• Bluetooth sender connection: 1 set UART, RX and TX on SJ2 (1)
• Bluetooth receiver connection: 1 set UART, RX and TX on SJ2 (2)
• MP3 Decoder connection: SPI communication, MOSI, CS, SCK, on SJ2 (2)
• Speaker connection: AUX cord

Software Design

• LED Matrix:
  • 1. Initialized LED matrix connected pins to board IOs.
  • 2. Designed matrix driver for screen display by reading an matrix.

• Joystick:
  • 1. Initialized 2 ADC channels for taking the x reading and y reading from joystick.
  • 2. Decoded voltage readings into joystick movement commands.

• Buttons:
  • 1. Initialized several gpio for taking binary command from button pressed.
  • 2. Enabled interrupts for each botton pressed.

• Mp3 Player:
  • 1. Initialize using UART3.
  • 2. Set device with selected sd card and volume.

Implementation

• LED Matrix driver functions:
  • 1. display_update: reload matrix display for refreshing the changes from the backend matrix.
  • 2. display_clear: erase all matrix values, and sets them to zeros.
  • 3. overwrite_pattern_to_screen: overite a given pattern onto the existing matrix
  • 4. append_pattern_to_screen: append a given pattern onto the existing matrix
  • 5. clear_pattern_on_screen: clear the pattern from screen by giving the pattern's current location and width and height.

• Joystick driver:
  • 1. joystick_running: run ADC capture on joystick continuesly to monitor user inputs.

• Buttons driver:
  • 1. Green button: starts a game, shots a missile, and start the game all over.

• Mp3 Player:
  • 1. Play a song.
  • 2. Play a song in single cycle.
  • 3. Play a song from a folder.
  • 4. Pause on play.
  • 5. Resume playback.

RGB LED Matrix

Hardware Design

Below are symbol and footprint for custom component-part in EasyEDA tool. These parts would be used in future PCB design.

LED Matrix and SJ2 Board Connections Schematics

LED Matrix and SJ2 Board Connections PCB

Hardware Interface

The 32x64 LED matrix is from Adafruit, with user mannual. It is composed of two upper and lower sectional LED pannels. Each pannel has R, G, B led channels and A, B, C, and D row control registers. Addtionally, column shift is controlled by Latch bit, clock is controled by CLK, and OE turns LED off when switching rows.

Connectivity Table LED Matrix to Sj2 Board: RGB LED Matrix Pin Description SJ2 Board R1 GPIO P2_0 G1 GPIO P2_2 B1 GPIO P2_5 R2 GPIO P2_1 G2 GPIO P2_4 B2 GPIO P2_6 A GPIO P0_6 B GPIO P0_26 C GPIO P0_16 D GPIO P0_22 CLK GPIO P2_9 LAT GPIO P1_20 OE GPIO P1_28 VCC 5VIN External Power Supply GND GND On Board

LED Matrix Front

LED Matrix Rear

Software Design

LED matrix io and driver is developed for communication between boards and LED matrix. IO driver consists of pin inialization by using gpio.h for each rgb channels, row selection register, CLK, LAT, and OE pins. By using "led_matrix_io.h" developers can using public function led_matrix_io_init and other basic controller functions.
For LED matrix driver, it is based on the previous IO driver to provide LED screen update, clean, init, and draw functionalities.

Implementation

Rtos Tasks:

• Updating Display: for display to continuously updating screen, a task is assigned for running the display_update function from the driver every 500 milliseconds.

Joystick and Buttons

Hardware Interface and Connections

Connectivity Table LED Matrix to Sj2 Board: Joystick Pin Description SJ2 Board Vcc Voltage +3.3V Xout Analog X Channel P0_25 Yout Analog Y Channel P1_30 Button GPIO P1_14 GND GND GND

Analog Joystick

Software Design

Joystick with voltage input produces two analog channels of outputs from the x and y axises of the joystick. Designed a driver to convert these two analog outputs and convert them into digital signals, then decoded as user movment such as move up, move down, move left, move right, move right up, move right down, move left up, and move left down.

Implementation

Rtos Tasks:

• JoyStick Running: Keep recieving two channels of analog signals and decode them into agent moves corresponding to right, left, up, down, right up, right left, left up, and left down.

Mp3 Decoder

Hardware Interface and Connections

Connectivity Table Mp3 Player to Sj2 Board: Mp3 Decoder Pin Description SJ2 Board Vcc Voltage +3.3V Rx UART3 P4_28 Tx UART3 P4_29 GND GND GND

Mp3 Player

Software Design

Mp3 player driver was created. It initialized UART3 and configured IO connections of RX and Tx. To send command for adust volume, play songs by number, play songs by folder name, and set play songs in cycle, please find the user manual here: mp3 player user manual

Implementation

Public Tasks:

• Initialize device: Select the sd card which has songs on the player
• Cycle play mode: play a song in single cycle
• Pause a song
• Resume playback

Game Logic

Game States

• 1. Start Up
• 2. Game Running
• 3. Game Over

Player Task

Game state: start up

• 1. Display start up screen once per starting
• 2. Reset game parameters

Game state: game running

• 1. Display player and health bar on screen
• 2. Capture and move player location by joystick signals
• 3. Check health and switch to game over state when player's health reaches zero
• 4. Check collision in collision mutex

Game state: game over

• 1. Display game over screen

Enemy Task

Game state: game running

• 1. Spawn enemy according to a timer for different game levels
• 2. Checking enemy collision in collision mutex
• 3. Remove collided enemy within a list of enemy objects

Button Task

Game state: start up

• 1. Play the back ground music in single cycle
• 2. If the green button is pressed, advanced to game running stage

Game state: game running

• 1. Play the back groud music in single cycle
• 2. If the green button is pressed, generate missile on screen and play a laser sound

Game state: game over

• 1. Play the game over music in single cycle
• 2. If the green button is pressed, return the state over all back to start up

Missile Task

Game state: game running

• 1. Check missile collision with enemy, player, and the boundary of the screen
• 2. Append missiles in array

Score Task

Game state: game running

• 1. If a missile hit an enemy, score plus two
• 2. If an enemy hit the bottom white line, which is our home base, score minus two
• 3. According to the number of score, increase enemy speed and spawn rate by a fix proportion

Testing & Technical Challenges

Most of the challenges for our project are bluetooth paring and game logic. For bluetooth to work between two boards, the configuration driver was wrote from scratch, which enable the device, and select paring bluetooth's physical address. For game logic, the problems are making sure the collision happened between mutiple objects with different moving speed.

Bug/Issue Name

Bug Number	Description	Solution
1	Two bluetooth device are not talking to each others automatically.	Used SJ2 board to configure the bluetooth through UART with AT commands
2	When a missile hit an enemy on the screen, sometimes, the missile will disapear first but not the enemy, and sometimes, the other way around.	Used mutex and pair locks to make sure when collision happened, only erase both objects by receiving both acknowledgments from enemy and missile.
3	Button debounce issue.	The button interrupt from ISR was not performing ideally. By using Preet's suggestion, a simple task of reading the button input solved this problem.
4	Player animation conflicts with moving missile.	Disabled missile generation while before playing the animation.

Conclusion

Coding a complicated Atari game on a microcontroller is a bit more complicated than we thought before starting. We went through writing our own base line driver for controlling other electronic components. Then, figured out FreeRTOS task API to move each character pixels on the led matrix. During development, we faced all different kind of issues such as button debounce, priority conflicts, parallel logic in sequential programming, and etc. In the end, we truly learned that nothing is for granted, as an embedded engineers we have to do everthing ourselves. This project can be further improved on score system and joystick movements.

Project Video

https://youtu.be/QRE9pQ7dBBg

Project Source Code

https://gitlab.com/runfeng.jiang/cmpe-244-space-invader-game/-/tree/main

References

Acknowledgement

Special thanks to Mr. Preet Kang for his lessons and detailed-documentation website on microcontrollers.

References Used

• 1. Mp3 user manual: https://usermanual.wiki/Pdf/Serial20MP320Player20v10120Manual.2117229468/view
• 2. LPC40xx_FreeRtos Github: https://gitlab.com/sjtwo-c-dev/sjtwo-c
• 3. Adafruit LED matrix user manual: https://learn.adafruit.com/32x16-32x32-rgb-led-matrix/

Appendix

• 1. LPC40xx_FreeRtos Github: https://gitlab.com/sjtwo-c-dev/sjtwo-c
• 2. FreeRTOS: https://www.freertos.org/a00116.html
