F16: Autonomous Fire Extinguishing Vehicle

Abstract

The Autonomous FEV is able to scan a room for fires through a focused IR sensor and navigate to each fire's location. Once the vehicle reaches a reasonable distance from the fire's location, the vehicle will spray water in the fire's general location and extinguish it.

Objectives & Introduction

The objectives of this project include:

• Create a stand-by mode where vehicle would rotate in place and scan
• Have vehicle detect a flame and traverse to its general location
• Stop vehicle when flame is detected and activate water pump to spray in the fire's general location

Team Members & Responsibilities

• Kevin Gadek
  • Sensor ADC Interface
  • Vehicle Assembly
  • Project Documentation
• John Purkis
  • DC Motor Controller Interface
  • PWM Interface
  • Project Documentation
• RuiQiang Yu
  • Vehicle Assembly
  • Project Documentation

Schedule

Week#	Start Date	End Data	Task	Status	Actual Completion Date
1	10/21/2016	10/28/2016	Finalize Project Proposal	Completed	10/28/2016
2	10/28/2016	11/04/2016	Compile Bill of Materials/Design Schematics	Completed	11/04/2016
3	11/04/2016	11/11/2016	Order necessary parts	Completed	11/15/2016
4	11/11/2016	11/18/2016	Disassemble prebuilt RC car/Develop initial IR sensor task	Completed	11/21/16
5	11/18/2016	11/25/2016	Develop preliminary servo motor control task	Completed	11/21/16
6	11/25/2016	12/2/2016	Assemble vehicle	Completed	12/9/2016
7	12/2/2016	12/9/2016	Test/troubleshoot system setup	Completed	12/11/2016
8	12/9/2016	12/16/2016	Fine-tune/Finalize of project	Completed	12/18.16
9	12/16/2016	12/20/2016	Prepare for demo/presentation	Completed	12/20/16

Parts List & Cost

Part Name	Quantity	Cost	Notes
SJOne Board	1	$80	Main microcontroller
Infrared Sensor Module	2	$13.67	Placed around front of car to detect and approximate flame location
Actobactics Bogie Rover	1	$69.99	Main vehicle
Water pump	1	$25.77	Aubig 12V Brushless DC water pump
Water pump battery supply	2	$8.00	12V 8xAA battery pack w/ switch
System battery supply	2	$5.00	6V 4xAA battery pack w/ switch
Voltage Regulator	2	$2.00	5V Voltage Regulator (Approx. 1A output current)

Design & Implementation

Hardware Design

The overall system design diagram is shown below.

Figure 1. Overall System Diagram

Hardware Interface

SJOne Board

Figure 2: SJ-One Board Picture

As shown below, various pins from the SJOne Board were selected for the ADC and motor PWM interfaces used in this project.

Pin Connectivity Table

Item	Port.Pin	Direction	Notes
1	P0.26	Input	ADC
2	P0.0	Output	DIR1
3	P0.1	Output	DIR2
4	P2.3	Output	PWM1
5	P2.4	Input	PWM2
6	P1.20	Output	Water Pump Enable

IR ADC Interface

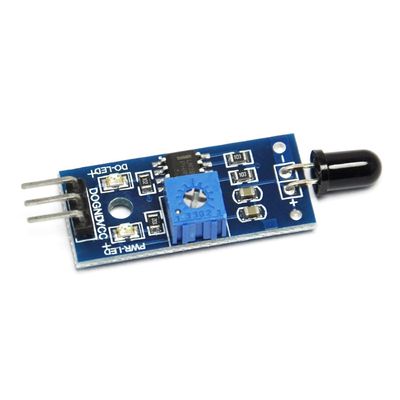

Figure 3. SmartSense IR Sensor

The IR sensor that was used allows both analog as well as digital output readings. For the purposes of this project, as outlined in Figure 1, the analog voltage output of the sensor is tied to an ADC pin in order to allow for much more precise readings. The board's 3.3V output was more than enough to meet the sensor's power requirements.

PWM Control

Figure 3. IrF3205 H-Bridge Motor Driver

The H-Bridge Motor Driver is powered by a 12V battery supply that has been regulated down to 5V with an LM7805. This allows both the 4.5V-7.4V voltage requirement of the Bogie Rover to be met while also ensuring enough current is being split among the six motors to adequately drive the Rover. The control signal bank is comprised of +5V, GND, DIR1, PWM1, DIR2 and PWM2 pins that allow motor control with either 3.3V or 5V logic. As shown in Figure 1, two GPIO pins are connected to the two DIR pins to allow easy GPIO switching to change motor direction. Two pins configured for PWM output are connected to the two PWM inputs, allowing for easy motor speed control. The output bank provides for two sets of motor control signals as well as external power input. In order to drive this specific Rover, the LM7805 output is connected to the POWER and GND pins on the driver's output bank, allowing approximately 5V and 2200 mA to be split among all six of the Rover's motors. The two MOTOR1 outputs are connected to the + and - inputs of the three motors on the left side of the Rover and the two MOTOR2 outputs are connected to the right side. This allows easy manipulation of either side of the Rover at once to allow for quick turning and movement.

Water Pump

We used a Aubig 12V Brushless DC water pump for this project.

Software Design

Figure 4. Basic Software State Diagram

The software logic follows the general flow shown in Figure 4. Various motor control functions are defined such as turn_left, turn_right, go_forward, and reverse that can be called on at will by the several tasks being used. Upon initialization, the state will be set to 0 and the pwm_task will make the Rover rotate in place while a separate flame_task will continually read sensor data. Because the sensor's base value is approximately 4095, conditions are set to check when the readings dip below a certain threshold. In this specific case, readings below 2000 indicate that a flame or flashlight has been detected. The flame_task will then set the system's state to 1 because it now knows that the flame is directly in front of the rover. The rover will then traverse towards the source of the flame while continually reading sensor data. If at any point, the sensor data indicates readings greater than 2000 while the state is still 1, then the system knows that it isn't correctly positioned to face the fire. In this case, the rover will re-enter state 0 and begin searching again. Once during traversal, readings indicate values less than 350, then a reasonable determination can be made that the fire is directly in front of the rover. In this case, all motors will stop and the water pump will start spraying.

Implementation

• To implement IR interface
  • Configure ADC pin
  • Store reading
  • Check if reading meets a certain threshold indicating fire detection and change state

• To implement PWM interface
  • Configure GPIO and PWM pins
  • Depending on which state, either spin in circle, go forward or stop

Testing & Technical Challenges

In terms of testing, test runs were conducted in order to fine-tune threshold values so that the Rover is able to detect fires at a reasonable distance. Different lighting environments were used to see how ambient light affected performance and accuracy of the Rover. Overall, the Rover was generally precise in determining a fire's location and stopping at an appropriate distance. Because testing was primarily done with a flashlight because actual fire would be a safety hazard in most cases, different flashlights produced slightly different behaviors from the Rover.

IR Sensor Calibration

Issue

Calibrating the IR sensor to focus on a specific source of IR waves rather than all the ambient light around it. ADC readings from the IR sensor were sporadic and unpredictable in areas with spotty lighting. Sensitivity calibration ended up not being as helpful as indicated in affecting the analog output of IR sensor.

In order to make the sensing element directional it was necessary to block light from all undesired directions. We used a film canister to do this. Film is spoiled if it is exposed to any light. Therefore, film canisters are designed to block light. By placing the sensing element at one end of the film canister we were able to turn a sensing element with no direction into one with direction.

The Flame sensing element is used to determine both the direction and distance of a fire. This is because the intensity of a light source is the inverse of the square of its distance. Flames emit visible light and light sources emit light radially. Therefore the greater the intensity of the light and the greater the temperature the closer the vehicle is to the flame. This is used to measure distance.

Using these settings both distance from the flame and the direction of the flame can be measured.

Solution

This problem was somewhat mitigated by creating a makeshift apparatus with a film canister, forcing the sensor to focus its sensing in one specific direction at a time. The film canister prevents most outside IR waves from interfering with readings.

Motor Power

Issue

Control of the six different DC motors provided on the vehicle was sporadic at best. Because each motor required a peak supply current of approximately 220 mA, the peak output current of the LM7805 voltage regulator often wasn't enough to supply all six of them without either overheating and/or stopping some motors from functioning.

Attaching a 7805 with a heatsink mitigated many of the overheating issues. Installing a heatsink to the LM7805 instantly resolved power issues and the vehicle was able to traverse ground easily.

Water Pump

Originally we were planning on using the H-Bridge MOSFET circuit to drive the water pump that would accompany the fire extinguishing vehicle. The water pump requires 12V DC and is rated for 1.1 Amps of current. This poses a significant problem for a board that can’t supply the power and current required. The solution was to have an electronic switch that can be activated through the use of a GPIO.

Transistor

We planned to use a transistor as an electronic switch. The problem was finding a transistor with a threshold voltage of roughly 3.3 volts which corresponds to the output of a GPIO pin. The transistors we purchased turned out to be insufficient.

Open Drain

Our next solution was to use open drain with an external pull up resistor. By controlling the external voltage and the resistor value we could control the current input and therefore, the speed of the water pump. By modifying the registers PINMODE and PINMODE_OD it is possible to set a given pin to disable its internal pull-up resistor and to enable an open drain configuration.

The open drain circuit is shown below. It is essentially the same as the transistor circuit we tried to complete. By making the power source a 12V battery pack and connecting it to an external pull up resistor we were able to briefly control a 12V DC water pump. However, the resistor we were using exploded. Our plan was to connect the water pump to the same 12V DC battery pack that drives the vehicle. It would only be used in S2 when the vehicle decided to stop so it wouldn’t compete with the rest of the vehicle for power. The open drain configuration didn’t work however for unknown reasons.

Conclusion

This project was ultimately successful at its goal. The RC Rover is able to detect IR light within a reasonable wavelength, detecting both certain flashlights as well as matches. The RC Rover is then able to transition between states according to readings that are being interpreted. These states allow the rover to traverse and navigate to several different fires within an enclosed area. The research done in learning how to interface the SJOne microcontroller over a variety of interfaces like ADC and PWM was a great learning experience. Creating a system with multiple tasks continually context switching and being able to predict the result was also a great lesson on designing with freeRTOS. With further work, this project could be improved both to increase reliability and accuracy.

Project Video

• Demo Run

Project Source Code

• Github Source Code Link

References

Acknowledgement

• Preetpal Kang
• Haluk Ozemek

References Used

• FreeRTOS API
• LM7805 datasheet
• H-Bridge Driver specifications
• IR sensor specifications
• Bogie Rover specifications
