Project Title

A Moderately Fancy LED Display

Abstract

This project will control several strings of household LED lights (i.e. Christmas lights) via a microcontroller. The LED display will be synced to a song playback.

Objectives & Introduction

This project will need to be able to control several relays with the microcontroller. The development board's GPIO header pins will be used to bias the gate of a FET, which will in turn drive the relay coil. The ADC will sync up the playback of the song to the LED display. The ADC will wait for the first beat of the song, and then begin the program. The LED timing and channel usage will be manually programmed to make a visually appealing show.

Team Members & Responsibilities

Mike Mellman

  • Project Management
  • Hardware Design and Build
  • Parts Procurement
  • Software Design
  • Test
  • Project Documentation

Schedule

Task Milestone? Expected Duration Actual Duration
Settle on project and approval by instructor Y 9/24 - 10/1 9/24 - 10/1
Finalize channel count on dev and relay boards 10/1 - 10/5 10/1 - 10/5
Identify vendors for parts 10/1 - 10/5 10/1 - 10/5
Prepare proposal 10/5 - 10/6 10/5 - 10/6
Final instructor approval 10/8 10/8
Finalize circuit design 10/8 - 10/15 10/8 - 10/12
Order online parts (long-lead from China) Y 10/8 - 10/15 10/12
Buy parts from stores Y 10/8 - 10/15 10/12 - 11/16
Pick song for display 10/8-10/15 10/13
Work on code for timing LEDs 10/15 - 11/22 10/15 - 11/22
Relay board in hand 11/1 11/4
Build hardware setup Y 11/2 - 11/5 11/8 - 11/17
Lecture on ADC 11/5 11/5
Write code to sync LEDs to song playback 11/6 - 11/9 11/9 - 11/16
Adjust LED switching (for nice video) 11/22 - 11/28 11/22 - 11/30
Complete report Y 11/28 - 12/3 11/1 - 12/1
Project presentation Y 12/3 12/3

Bill of Materials & Cost

Ref Number Part Number Description Vendor Qty Unit Cost Total Cost
1 SJ One Board SJSU development board, LPC1758 SJSU Engineering 1 $75.00 $75.00
2 20-018-902 Solid state relay module, 5V, 8 channel Sainsmart 1 $20.99 $20.99
3 94781 LED string, 60 count, multi-color, 110VAC Holiday Time 8 $9.98 $79.84
4 16082 Extension cord, 8', indoor Walmart 8 $6.37 $50.96
5 8662K278 Delrin sheet, black, 6x12x0.5" McMaster-Carr 1 $28.19 $28.19
6 91780A735 Standoff, aluminum, 1/2" tall, 4-40 thread McMaster-Carr 12 $0.27 $3.24
7 91735A106 Machine screw, 1/2", 4-40 thread, pan head McMaster-Carr 12 $0.04 $0.53
8 91771A110 Machine screw, 1/2", 4-40 thread, flat head McMaster-Carr 12 $0.05 $0.55
9 7556K25 Cable tie, 4 way McMaster-Carr 16 $0.14 $2.23
10 ULA29V 9V battery, alkaline Radio Shack 1 $5.99 $5.99
11 270-324 9V battery snap connector Radio Shack 1 $2.99 $2.99
12 270-1803 Project enclosure, 5x2.5x2", ABS black Radio Shack 1 $5.49 $5.49
13 LM317 Voltage regulator Fairchild 2 $0.56 $1.12
14 RN55D78R7FR36 Resistor, 78.7ohm, 1%, 1/8W, axial lead Vishay 1 $0.05 $0.05
15 RN55D1430RFR37 Resistor, 143ohm, 1%, 1/8W, axial lead Vishay 1 $0.05 $0.05
16 RN55D2370FR38 Resistor, 237ohm, 1%, 1/8W, axial lead Vishay 2 $0.05 $0.10
17 50802-9001 Square contact, for header post Molex 11 $0.04 $0.44
18 216-201 Ferrule, 22AWG Wago 11 $0.12 $1.32
19 83006-009 Hook up wire, 22AWG White, 5 feet Belden 1 $2.50 $2.50
20 83006-002 Hook up wire, 22AWG Red, 2 feet Belden 1 $1.00 $1.00
21 83006-010 Hook up wire, 22AWG Black, 2 feet Belden 1 $1.00 $1.00
22 8916-010 Hook up wire, 14AWG Black, 10 feet Belden 1 $5.00 $5.00
23 320553 Ring terminal, #4 stud size, 22-16AWG TE Connectivity 2 $0.24 $0.48
Project Total $289.07

Design & Implementation

Hardware Design

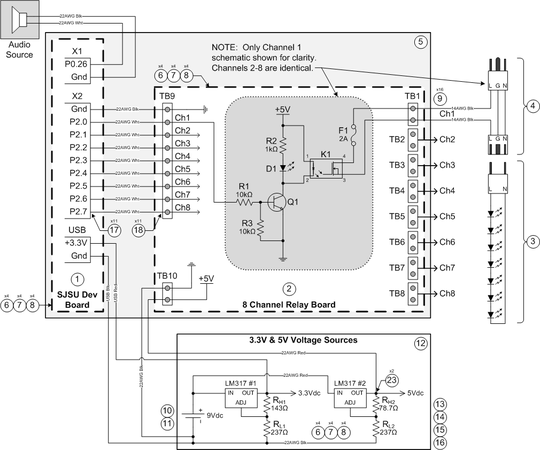

The system schematic is shown below in Figure 1 (with Bill of Material references). Each GPIO pin biases the gate of a transistor on the relay board. The voltage source on the relay board then has a conductive path to power the relay coil.

The voltage sources use linear voltage regulators which control each output voltage. Each regulator's output voltage is set by the equation VOUT = VREF (1 + RL / RH). For the LM317, VREF is a fixed voltage of 1.25Vdc, and RL is typically chosen to be 240Ω. The output voltage VOUT is fixed by the choice of RH.

Figure 1: Electrical schematic

Hardware Fabrication Steps

A piece of 1/2" Delrin sheet was obtained to hold the two boards and to give the AC wiring some strain relief. Holes for standoffs were drilled and tapped (see Figure 2). The boards were then mounted (see Figure 3) to the Delrin with Aluminum standoffs. The relay board was screwed down, since it would not need to be removed. The development board was held on with set screws for easy removal during the fabrication process.

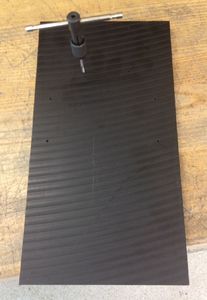

Figure 2: Drilled and tapped holes

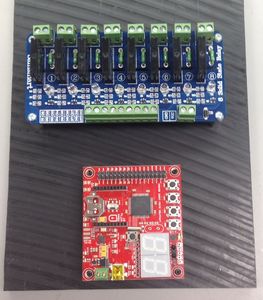

Figure 3: Mounted boards

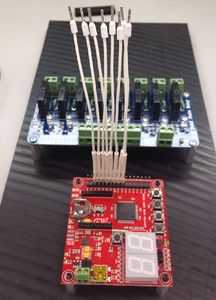

To attach the signal wires to the development board's header pins, a connector block was tried (to plug in all the signals at once). However, the correct contacts could not be obtained. Instead, each wire was terminated in a Molex-type contact that fit the header pins well. Each contact was then covered in white shrink tube to prevent shorting and to label each wire (see Figure 4). Each wire end that plugs into the relay board's screw terminal block was terminated in a Wago ferrule (see Figure 5). This wiring is shown in Figure 6. It should be noted that the 3.3Vdc and ground wires were removed later due to higher voltage requirements.

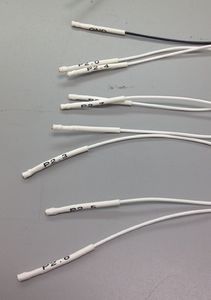

Figure 4: Dev board contacts
Figure 5: Relay board contacts

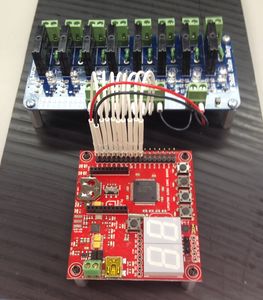

Figure 6: Board wiring


Per the vendor's datasheet, the Omron solid state relays require a control voltage of 4-6Vdc to switch. The use of the development board's 3.3Vdc bus voltage was unsuccessfully attempted in the chance that the relays might switch at a lower voltage than specified. If it had it worked, this would have eliminated the need for a second voltage source. As a result, a dual voltage source was designed and built. Using a 9Vdc alkaline battery and two linear regulators, a 3.3Vdc and 5Vdc source was constructed (see Figure 7). The 5Vdc voltage source connected to the relay board with 2 wires. The 3.3Vdc source connected to the development board through a modified USB cable. There are four wires and foil shielding in a USB cable. The power and ground are the red and black wires, respectively. The Analog to Digital Converter (ADC) signal is provided from a set of defunct headphones. Cutting off a speaker and stripping the jacket off will reveal a twisted wire pair. The insulation must be burned off, and the wire cleaned with a solvent such as isopropyl alcohol.

Figure 7: Dual voltage source

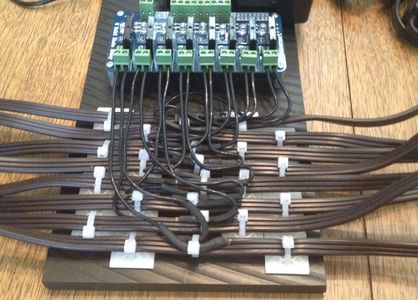

Extension cords were modified instead of the LED cords. This would allow the LEDs to be used in a more conventional fashion by my spouse upon the completion of this project. The AC line wire was carefully separated from the cord with an exacto blade and then cut. A piece of 14AWG wire was soldered to the exposed AC line wire to allow easier connection to the relay board's screw terminals. Each extension cord was mounted to the Delrin sheet using cable ties (see Figure 8). The voltage source box was attached to the Delrin sheet using velcro tape. The voltage wires were then hooked up to each board. The project hardware was complete, with the two boards powered by a battery only (see Figures 9 and 10). It should be noted that the 8 AC plugs are connected to 110Vac power by a power strip for convenience.

Figure 8: AC wiring

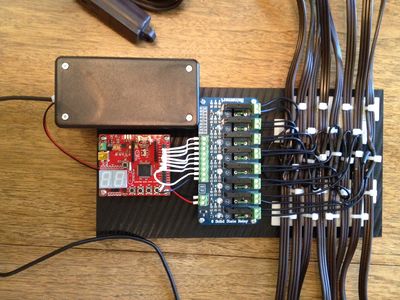

Figure 9: Completed system

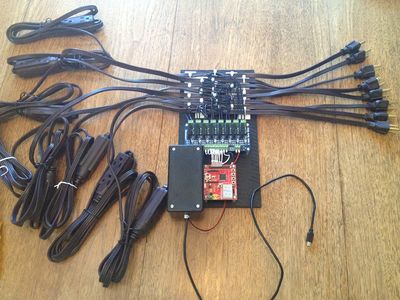

Figure 10: Completed system


Hardware Interface

The hardware is interfaced to the microcontroller via two methods. The first is through use of GPIO ports. The port's direction is set to output so that the transistors can be turned on and off. Ports 2.0 through 2.7 are used in this fashion. The ADC is also used to get an input syncing signal from an external audio source (my computer for this project). An ADC driver was used to correctly configure the ADC for use. The driver performs the following steps:

  • Power up ADC
  • Enable ADC
  • Set ADC clock frequency (for this project, it was 1/4th the CPU clock)
  • Set ADC channel number
  • Start conversion
  • Wait for conversion to finish
  • Return result of conversion

Software Design

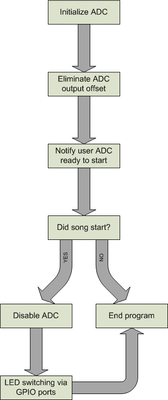

The software design requires the initialization of the ADC, biasing the ADC output, and then beginning the LED display once the program has confirmation of the song starting. The software block diagram is shown below in Figure 11.

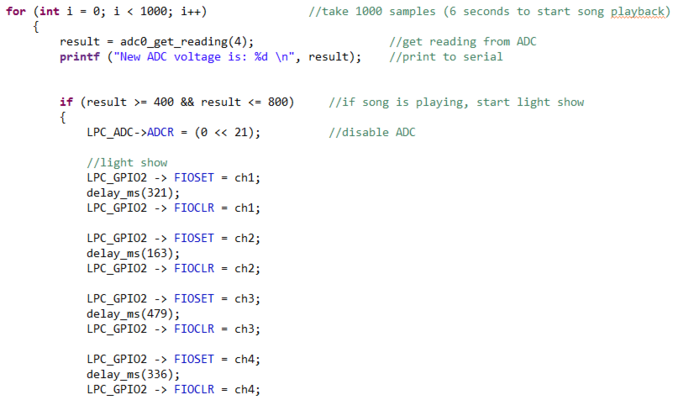

Figure 14: Sample code

Implementation

The song chosen for this project is "Jingle Bell Rock" by Bobby Helms. It was chosen because it is not extremely long (~2 minutes) and has a distinct musical beat. Songs from Trans Siberian Orchestra are twice as long and have a much higher tempo. When programming a light show, higher tempo means more data points to handle. "Jingle Bell Rock" is a nice compromise, with over 350 distinct points to flash the LEDs. After choosing the song, a method for getting the timing information had to be devised. Thankfully, I have the Nero suite on my computer, which includes Nero WaveEditor. Figure 12 shows the waveform interface and song timing.

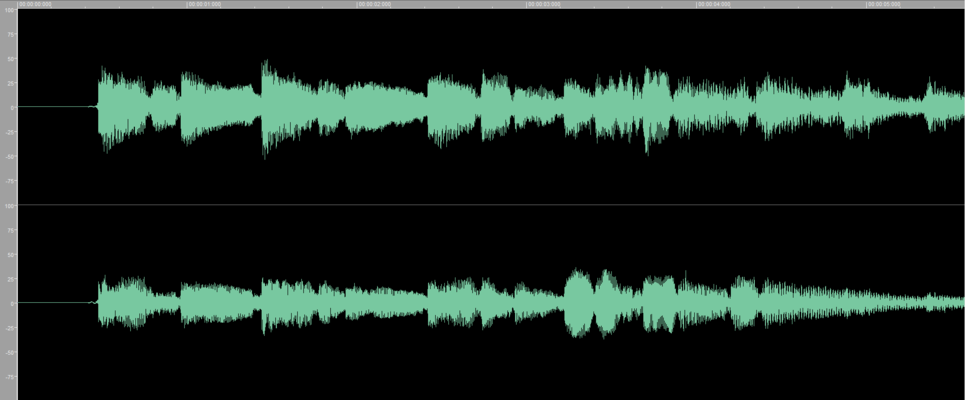

Figure 12: Wave diagram


Note that this view is showing only 5 seconds of the song, which helps to show individual beats. To make it easier to get every note correctly timed, I slowed the song down by four times. This greatly aided my ability to accurately record the critical song timing. The data was then imported into a spreadsheet, and every song feature was associated with a time and LED channel (see Figure 13).

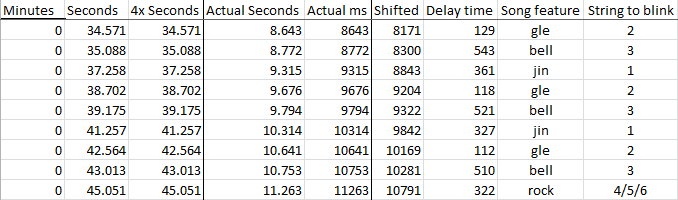

Figure 13: Song data


To correctly sync the song playback with the LED flashing, an ADC loop was used. The song has 450ms of quiet before the first note. Once the ADC "hears" the first note, the main portion of the program starts with the LED switching. It was observed that the ADC accurately measured DC signals, such as board Vcc (4096 on this board) and ground (0 on this board). However, when the ADC input was left without a signal, the output readings seemed to float around 1000 (1/4th the full scale). The song signal was lost in this output, so a method was developed to get the ADC output to zero before taking the song measurement. I noticed that letting the ADC take samples caused the output to drop. Thus, in the first part of my program, I allow the ADC to take 2000 samples to get the output to zero. The song input can then accurately be sampled. I had to constrain this reading to a narrow range, as I also noticed spurious high readings (over 3000) which were not related to the song. By creating a "notch filter" in software, I was able to achieve 100% reliability in syncing the song to the program (see Figure 14 for code). I programmed every point in the song using the GPIO outputs and delaying the time the LED on-time.

Figure 14: Sample code

Testing & Technical Challenges

Testing

I used the relay board's LEDs for troubleshooting the code without having to use the full string of LEDs. This allowed me to ensure correct switching. I also used the Hercules program heavily to get the ADC to work as I needed it to. This program allowed me to determine what the ADC outputs were during the software development phase of the project.

Relay Board Vendor

For the kind of fast switching this project demands, a mechanical relay would be a poor choice. I initially had decided to go down this path, but reconsidered and chose to use solid state relays (SSR). There are many sources of complete relay boards. They are cheaper than building a custom board and buying all the required components. The board will almost certainly be coming form China, so it is critical to order the board as quickly as possible. My board took over one month to arrive (with the free shipping), so I would suggest paying a bit extra for the expedited shipping. Once the board arrives, thoroughly scrutinize it for defects. On my board, several solder joints required touching up, and there was a fair amount of solder splatter that needed cleaned off. I was extremely careful with this, since 110Vac house power would be used on the board. Overall, I still recommend using a ready-made board for a short project like this. It will almost certainly work straight away, with no issues to troubleshoot.

Music Editing Software

It is absolutely critical to be able to break the song down into small pieces for analysis. I first looked online for freeware before realizing I had a suitable program already. There are software programs available for purchase online. This is an issue that must be dealt with very early on in the project.

Analog to Digital Converter

I ended up writing the full ADC driver before realizing that it is included in the course's "L2_Drivers" folder in Eclipse. This cost me several hours of unnecessary work. I had a very difficult time getting the ADC to function in the way I wanted it to. It worked well for steady signals (such as Vcc) but not as well for the irregular signal a song produces. As was described in the "Implementation" section above, the solution involved pre-sampling the ADC. By taking 2000 samples before the actual signal was sampled, the ADC output was taken down to 0. I was then able to get an accurate sample of the song. It is easy to troubleshoot this issue by using a printf command on the ADC result and viewing it on the course's Hercules serial program. This program is how I was able to test the ADC output. I tested the song syncing by taking another 1000 samples (~6 seconds), and starting the song at various points to ensure proper functionality. To achieve perfect results I constrained the acceptable ADC result, which eliminated the problem of occasional high readings.

Conclusion

Since Clark Griswold is one of my favorite characters, this type of project is something I've wanted to do for a long time. This class has given me the knowledge and confidence to carry on. While this project is only eight strings of Christmas lights, it is an easily scalable concept. Starting indoors on a Christmas tree is the perfect way to learn some of the hang ups, such as getting the timing right and getting the ADC to function as I need it to. Possible upgrades to this project are:

  • Adding to the channel count and moving the LEDs outside. This would require significant weatherproofing.
  • Automatically sensing the ADC gain, and picking which string of LEDs to light up in software.
  • Adding a low power FM transmitter to allow passersby to listen to the music on their car radio.
  • Adding motorized channels that would move and light up based on software commands.

It has given me the confidence to work on this type of project alone, and has taught me how to use many different types of microcontroller peripherals. In addition, this is a project my wife and kids can get excited about.
