Wake up Barista

Wake up Barista

Abstract

When you have studied all night and need to attend a meeting in 9:00am next morning, you are running out of time to get anything done but have to get your caffeine fixed. Is there anything better than wake up with coffee aroma fills the air surrounding you? We want to introduce our product, your personal Wake Up Barista. A smart coffee maker embedded with alarm clock. Brewing the coffee for you right away when you leave your bed! This device will heating and brewing the coffee automatically when the alarm clock begins to vibrate and ring. Enjoy the hot and fresh coffee when you just open your eyes, also take a deep breath with the tempting smell, you will love it for sure!

Objectives & Introduction

Our product has two major parts. First part is a modern alarm clock; secondly, it is able to make delicious coffee or tea.
For the alarm clock part, basically, you need to set the alarm clock time through our system, the real time clock inside the SJ One board will record the data you have set and start the system. When the time reaches the setting time, SJ One board is using a PWM pin to control a singing speaker device and also using a GPIO pin to control some LED lights to help you wake up under a warm and sweet environment. In addition, the system support one other GPIO pin to set as a snooze key to push 10 minutes delay, and there is another GPIO pin is set as a reset key. Moreover, we are using an small but great LCD screen to show the needed data. These are all primary functions and theory of alarm clock part.
For the barista side, it is relates inseparably with the alarm clock part we have, and it will start to produce hot drink 10 minutes before alarm set time, so that the drink will be ready when the setting time is up. In side the barista, we are using many high level functions and sensors to control the whole system, includes high efficiency heater, water pump, vibrator, etc. Even if you choose to use snooze key multiple time, the system has a heat preserve equipment to keep the drink warm all the time.

Team Members & Responsibilities

  • Chien Wei Lan
  • Mingyang Wang
  • Lin Zheng
  • Zhixuan Zhou

Schedule

Show a simple table or figures that show your scheduled as planned before you started working on the project. Then in another table column, write down the actual schedule so that readers can see the planned vs. actual goals. The point of the schedule is for readers to assess how to pace themselves if they are doing a similar project.

Week# Start Date End Date Task Status Actual Completion Date
1 3/19 3/21 Finalized Schedule and materials Completed 3/21
2 3/22 3/28 Test water pump, timer, and heater Completed 3/28
3 3/29 4/4 Design Schematics & build up prototype Completed 4/4
4 4/5 4/11 Refine prototype & Start to order required components In process
5 4/12 4/18 Testing and Debug Plan
6 4/19 4/25 Finish project report Plan
7 4/26 5/2 Find project presentation Plan
8 5/3 End Ready for Demo Plan

Parts List & Cost

Number Part Name Cost
1 Heater N/A
2 Water pump N/A
3 LCD Module $19.95
4 Buzzer N/A
5 vibrator N/A
6 vibrator N/A

Design & Implementation

The design section can go over your hardware and software design. Organize this section using sub-sections that go over your design and implementation.

Hardware Design

We use SJ one board as LPC1658 arm cortext-M microcontroller as the project platform, with built-in RTC module and external LCD module, we can show the time on the LCD and set up the alarm clock on it. By manipulating two GPIO pins, one is used to control the relay to turn the heater on, the other one is used to control the water pump for dripping hot water. The overall system block diagram and schematic as below.

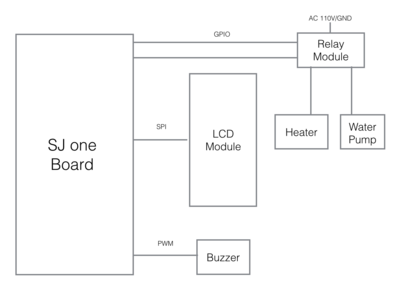

Block diagram.png

Fig.1 Block Diagram of Wake Up Barista

Block diagram.png

Fig.2 Schematic of Wake Up Barista


TABLE.I Pin assignment

SJ one board Port LCD Port Relay Water Pump Heater Buzzer
MOSI1 MOSI1 MISO
SCK1 SCK1 SCK
CS P1.19 CS
RST P1.20 RST
RS P1.22 DS
3V3 VCC 1
GND GND 2 RELAY GND
PWM0 PWM0 Buzzer PWM
5V RELAY 5V
RELAYCTL1 WP_CTL WP_CTL
RELAYCTL2 HTR_CTL HTR_CTL
