File:S15 244 G29 IMG 0005.png

From Embedded Systems Learning Academy
Jump to: navigation, search
S15_244_G29_IMG_0005.png ‎(774 × 452 pixels, file size: 14 KB, MIME type: image/png)

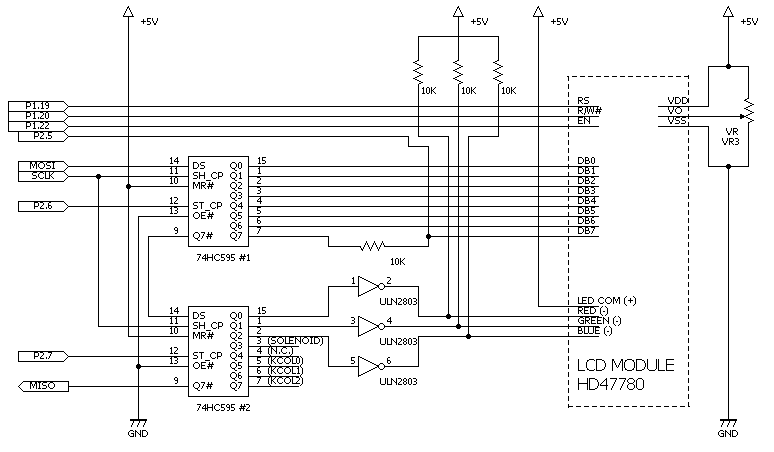

LCD module schematic
