File:Pinout Bridge Controller.jpeg
From Embedded Systems Learning Academy
Size of this preview: 800 × 456 pixels. Other resolutions: 320 × 183 pixels | 2,007 × 1,145 pixels.
Original file (2,007 × 1,145 pixels, file size: 161 KB, MIME type: image/jpeg)

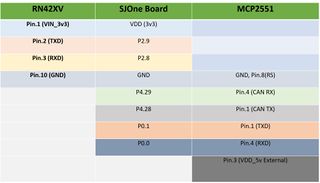

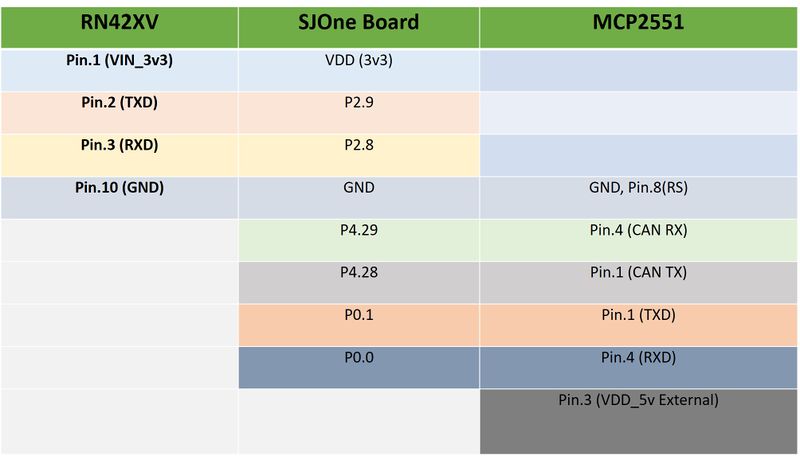

Pin connection between RN42xv(Bluetooth module), SJOne board and CAN transceiver.
