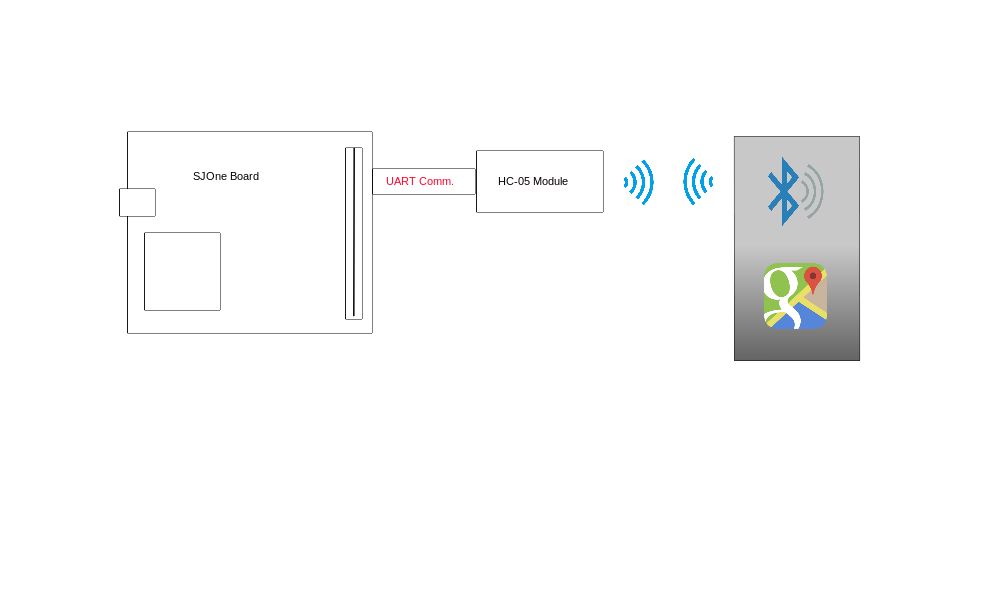

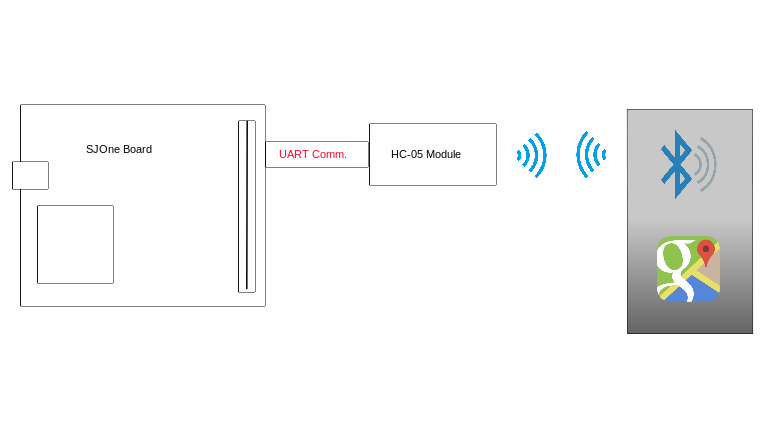

This is a block diagram of our communication bridge used for tatanano car. HC-05 module is connected to sjone board using UART2 pins(Tx2 Rx2). Baud rate we chose is 115200. That bluetooth module connects to android application developed for this project in slave mode(default for HC-05). The application can show the data sent from car on google maps like speed, location, heading, bearing etc.
