File:Hardware connection sjone hc 05.png
From Embedded Systems Learning Academy
No higher resolution available.

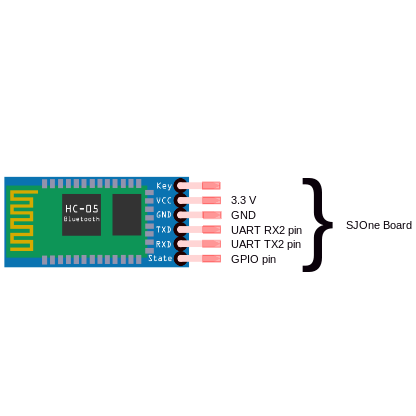

This image describes the hardware connections of HC-05 module with SJOne board. It is a serial to Bluetooth converter. Firmware on the module takes care of low level communication code like connecting to device, transferring data at higher speed that UART and keep in sync. with UART communication. All we need to do is connect this module with our controller and send data over UART pins connected to this module.
