File:CmpE146 F16 RectifyingCircuit.png
From Embedded Systems Learning Academy
Size of this preview: 720 × 599 pixels. Other resolutions: 288 × 240 pixels | 758 × 631 pixels.
Original file (758 × 631 pixels, file size: 9 KB, MIME type: image/png)

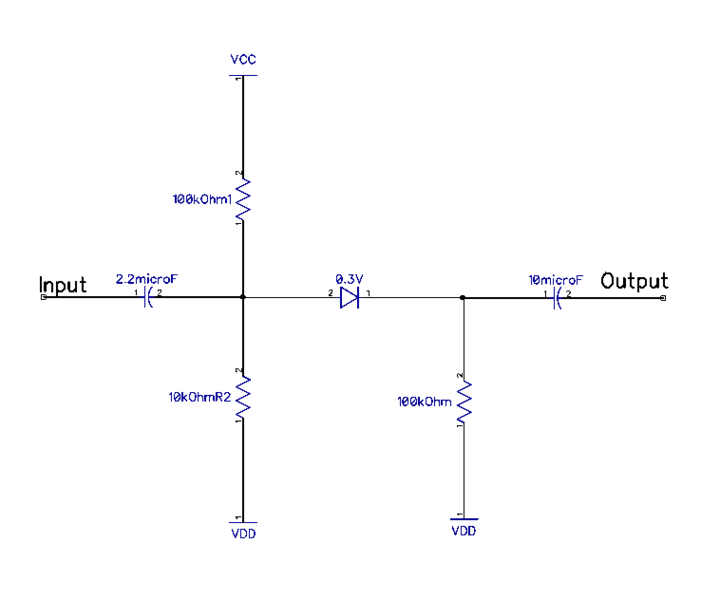

This circuit takes in the input from the seismograph circuit and removes the negative voltage portion of the output waveform. This is done by a rectifying circuit. The output voltage is approximately 0 volts.
